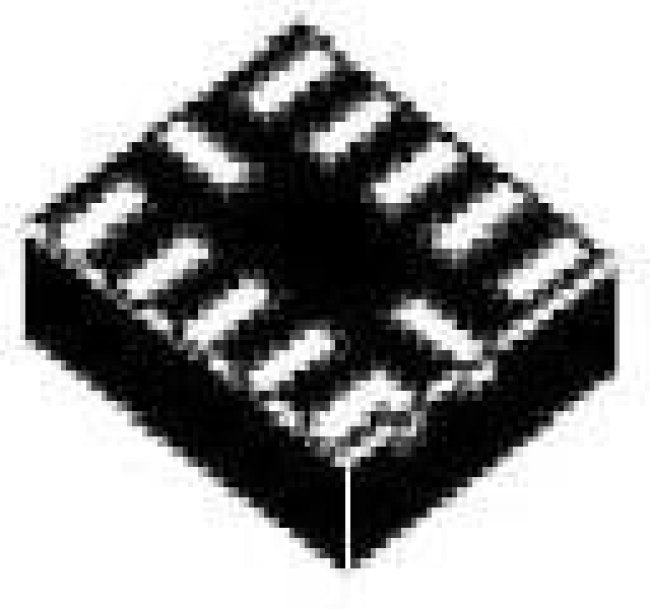

TXB0304RUTR, 0.9V~3.6V TrI-State,UnIdIrectIonal Voltage Level Translators -40°C~+85°C BI-DIrectIonal AutomatIc dIrectIon detectIon 4 0.9V~3.

TXB0304 4-Bit Voltage-Level TranslatorTexas Instruments TXB0304 4-bit Bidirectional Voltage-Level Translator with Automatic Direction Sensing uses two separate configurable power-supply rails. This TI device features fully symmetric supply voltages of 0.9V to 3.6V on A Port and B Port. The TI TXB0304 Voltage-Level Translator also has a V CC isolation feature tht places all outputs in the high-impedance state if either V CC input is at GND. The Texas Instruments TXB0304 provides low power consumption of 5µA Max (I CCA or I CCB ). The I OFF circuitry supports partial-power-down mode operation.
