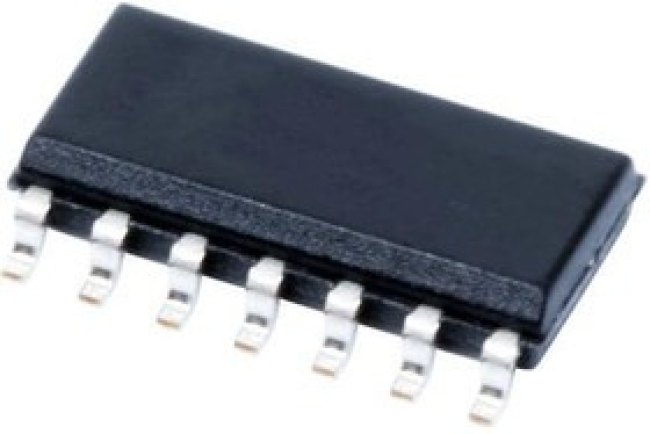

TXB0104D, Translation - Voltage Levels 4-Bit Bi-directional V-Level Translator

Semiconductors\Logic ICs\Translation - Voltage LevelsTXB0104 4-Bit Bidirectional Voltage-Level ShifterTexas Instruments TXB0104 4-Bit Bidirectional Voltage-Level Shifter uses two separate configurable power-supply rails. The A port is designed to track V CCA. V CCA accepts any supply voltage from 1.2V to 3.6V. The B port is designed to track V CCB. V CCB accepts any supply voltage from 1.65V to 5.5V. This feature allows for universal low-voltage bidirectional translation between any of the 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V voltage nodes. V CCA must not exceed V CCB.
