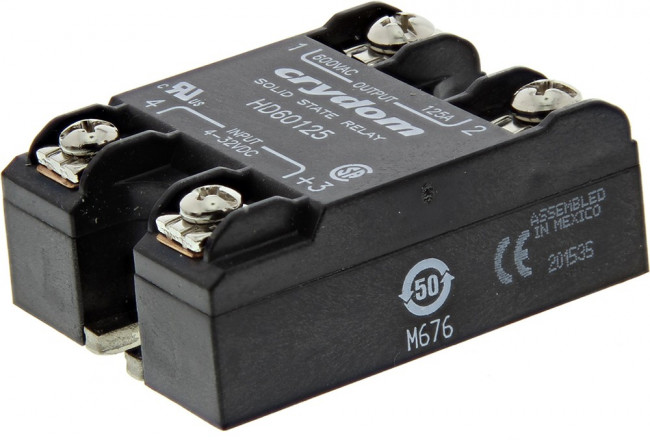

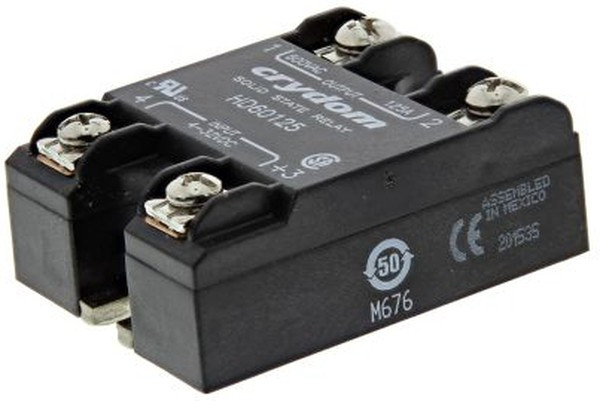

HD60125
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Keep up with your appliance control needs with this Sensata | Crydom solid-state relay. It works using handy semiconductors that respond to commands quickly, opening and closing circuits in the blink of an eye.
| Информация о производителе | |
| Производитель | Sensata Technologies |
| Бренд | Sensata Technologies |
| Основные | |
| capacitance | 8pF |
| circuit arrangement | 1 Form A |
| control voltage range | 3 → 32 V dc |
| control voltage range: | 4 VDC to 32 VDC |
| Дата загрузки | 13.04.2024 |
| eccn (us) | ear99 |
| eu rohs | Compliant with Exemption |
| factory pack quantity: factory pack quantity: | 20 |
| input current: | 7 mA to 12 mA |
| input type | DC |
| ip rating: | IP00 |
| i/o isolation voltage (v) | 4000 |
| категория | Кнопки, переключатели, разъемы, реле/Реле |
| lead shape | Screw |
| load current rating: | 125 A |
| load voltage range | 48 → 660V ac |
| load voltage rating: | 48 VAC to 660 VAC |
| manufacturer: | Sensata |
| maximum control voltage | 32 V |
| maximum input current (ma) | 2(Typ) |
| maximum input voltage (v) | 32 |
| maximum load current | 125 A |
| maximum load voltage | 660 V ac |
| maximum off-state leakage current (ua) | 5000(RMS) |
| maximum operating temperature | +80°C |
| maximum operating temperature (°c) | 80 |
| maximum output current (a) | 125 |
| maximum output voltage (v) | 660 |
| maximum turn-off time (ms) | 8.33 |
| maximum turn on time | 1/2 cycle |
| maximum turn-on time (ms) | 8.33 |
| minimum control voltage | 4 V ac/dc |
| minimum input voltage (v) | 3 |
| minimum load current | 150 mA |
| minimum load current (ma) | 150(RMS) |
| minimum load voltage | 48 V ac |
| minimum operating temperature | -40°C |
| minimum operating temperature (°c) | -40 |
| mounting | Screw |
| mounting style: | Panel Mount |
| mounting type | Panel Mount |
| off state leakage current | 1 mArms |
| operating temperature range | -40 →+80°C |
| output device | SCR |
| output type | AC |
| output type: | SCR |
| package / case: | Hockey Puck |
| package height | 23 |
| package length | 58.4 |
| package width | 45.7 |
| партномер | 8012520678 |
| part status | active |
| pcb changed | 4 |
| pin count | 4 |
| product: | Solid State Relays |
| product category: | Solid State Relays-Industrial Mount |
| product type: | SSR-Solid State Relays |
| series | HA AND HD SERIES |
| series: | HA/HD |
| standards met | CE, CSA |
| subcategory: | Relays |
| switching type | Zero Cross |
| terminal type | Screw |
| termination style: | Screw |
| type: | Heavy Duty |
| typical input to output capacitance (pf) | 8(Max) |
| Время загрузки | 21:04:32 |
