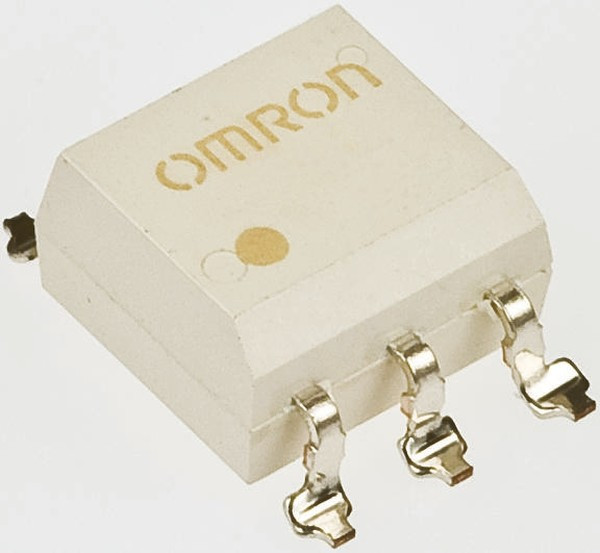

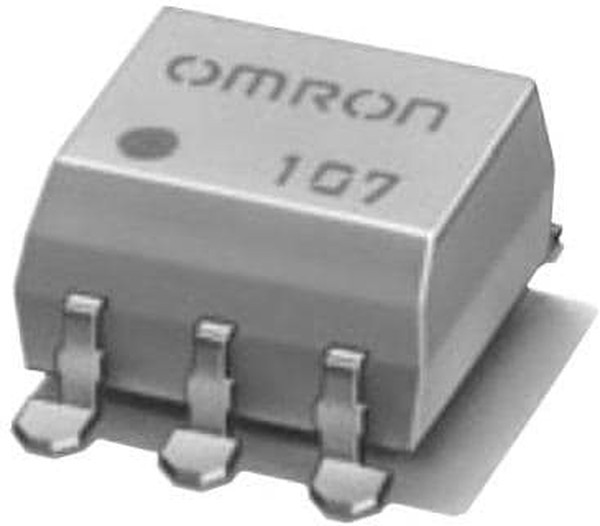

G3VM351E

ЭлектроэлементRELAY, MOSFET, SPNO; Contact Configuration:SPST-NO; Load Current:120mA; Relay Terminals:SMD; Load Voltage Max:350VAC; On State Resistance Max:50ohm; Isolation Voltage:2.5kV; Forward Current If:10mA; Product Range:G3VM Series; Control Voltage DC Max:1.3V; Control Voltage DC Min:1V; Control Voltage Type:DC; Current Ir Max:10µA; Dielectric Strength Voltage Vrms:2500VAC; External Depth:6.4mm; External Length / Height:3.65mm; External Width:4.58mm; Insulation Resistance:1000Mohm; Load Current RMS Max:120mA; Load Voltage Range:350V AC; No. of Pins:6Pins; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Peak Load Voltage +:350VAC; RMS Load Voltage Max:350VAC; Turn Off Time:1ms; Turn On Time:1ms
