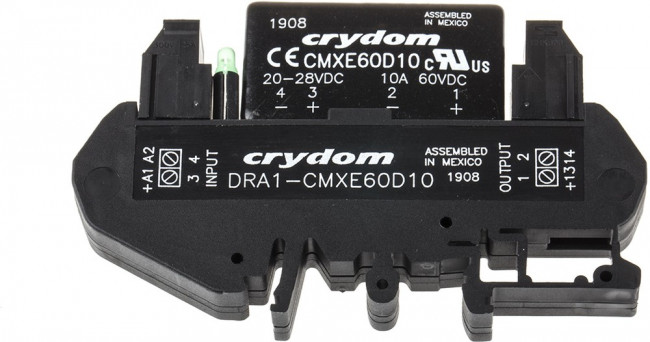

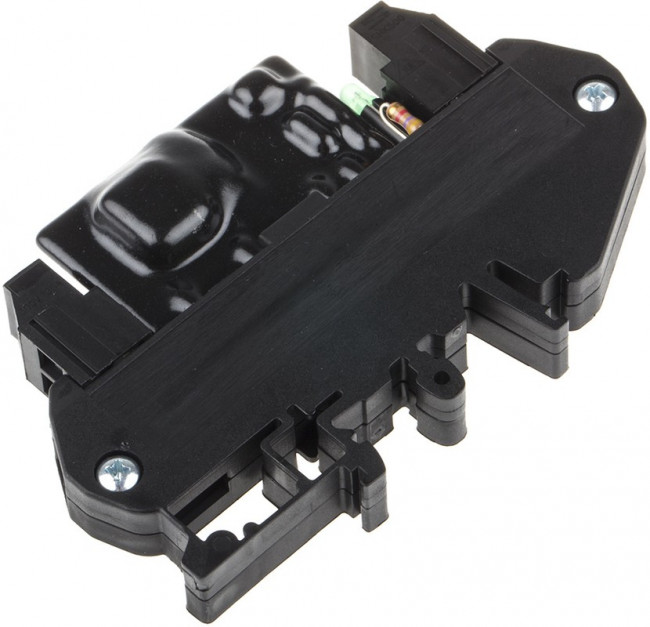

Name: DRA1-CMXE60D10, Solid State Relay, DRA1, 1NO, 10A, 60V, Screw Terminal
Brand: Sensata Technologies
SKU: DRA1-CMXE60D10

Кнопки, переключатели, разъемы, реле Реле Твердотельные Sensata DRA1-CMXE60D10, Solid State Relay, DRA1, 1NO ...

Подробное описание

44 810 ₽

– +

Бонус: 896.2 !

Бонусная программа

Итого: 44 810 ₽

Купить

Solid State Relays10mm single channel DIN rail mount SSR assembly DC ratings up to 200 Vdc and 8 A 3-10 and 20-28Vdc control

Информация о производителе
Производитель	Sensata Technologies
Бренд	Sensata Technologies
Основные
capacitance	15pF
contact form:	SPST(1 Form A)
control voltage range	20 → 28 V dc
control voltage range:	20 VDC to 28 VDC
Дата загрузки	13.04.2024
factory pack quantity: factory pack quantity:	10
input current:	12 mA
категория	Кнопки, переключатели, разъемы, реле/Реле
load current rating:	10 A
load voltage range	1 → 60V dc
load voltage rating:	1 VDC to 60 VDC
manufacturer:	Sensata
maximum control voltage	28 V dc
maximum load current	8 A
maximum load voltage	60 V dc
maximum operating temperature	+80°C
maximum operating temperature:	+80 C
maximum turn on time	1ms
minimum control voltage	20 V dc
minimum load current	0 A
minimum load voltage	1 V dc
minimum operating temperature	-30°C
minimum operating temperature:	-20 C
mounting style:	DIN Rail Mount
mounting type	DIN Rail
off state leakage current	100 μA
operating temperature range	-30 →+80°C
output device	AC; DC
output type:	SCR
package / case:	SIP-4
партномер	8004366105
product:	Solid State Relays
product category:	Solid State Relays-Industrial Mount
product type:	SSR-Solid State Relays
range	DRA1-CMX
relay contact form:	1 Form A(SPST-NO)
series	DRA1 CMX
series:	DRA1
subcategory:	Relays
switching type	DC
terminal type	Screw
termination style:	Wire Clamp
type:	Indicator
вес, г	30
