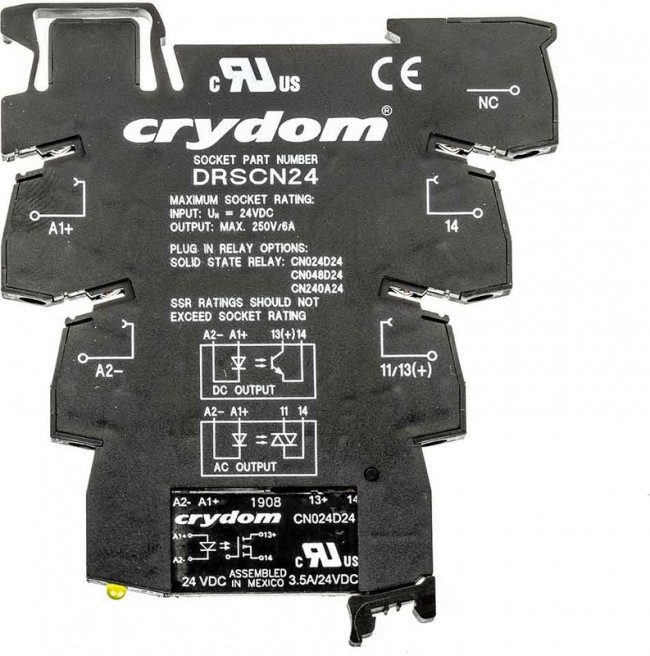

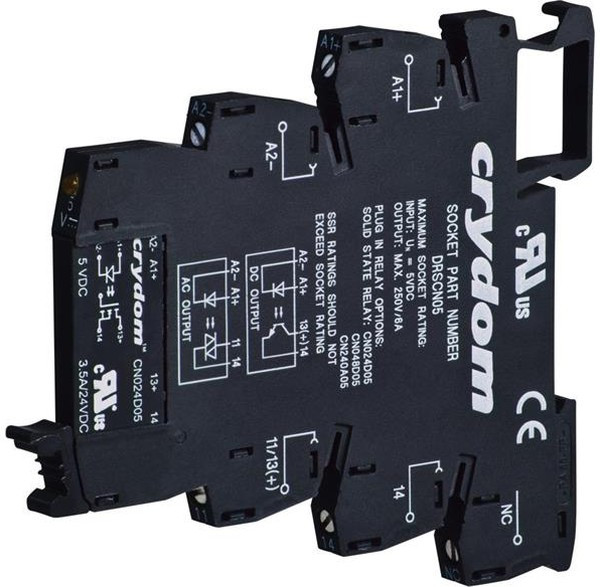

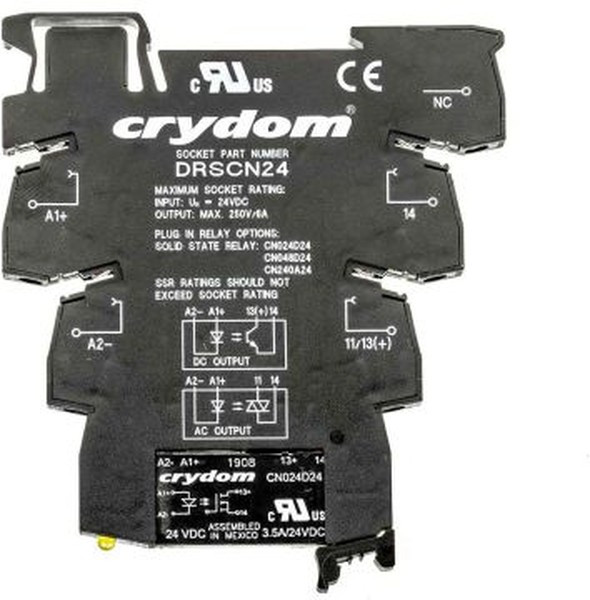

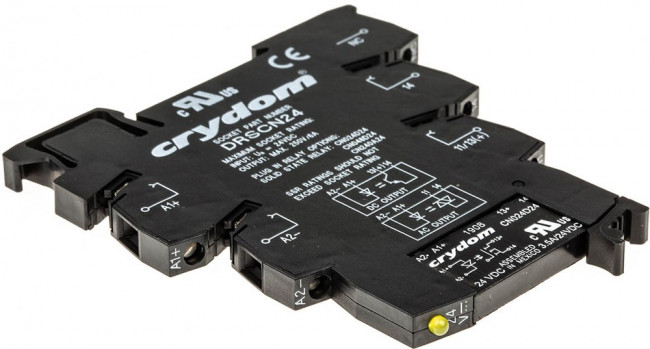

DRA-CN024D24, Твердотельное реле, SPST-NO, 3.5 А, 24 В DC, DIN-рейка, Винт, Переход Через Нуль

Реле и Переключатели\Реле\Твердотельные Реле и Контакторы\Твердотельные РелеThe DRACN024D24 is a 1-phase Solid State Relay with UL94V-0 housing, SPST-NO contact, zero crossing switching and screw terminals. This DRACN-series DIN-rail-mount mini-SIP relay features yellow LED input status indicator. • 6.2mm DIN-rail mount (35mm) SSR assembly• 24 to 14AWG Solid or stranded Maximum wire size (load side)• 0.4V Typical on-state voltage drop• 2.5kV Dielectric strength• 2.67kR Nominal input impedance• 350µs Turn-on and 80µs Turn-off maximum time• -25 to 60°C Ambient operating temperature range• IP67 Protection rating
