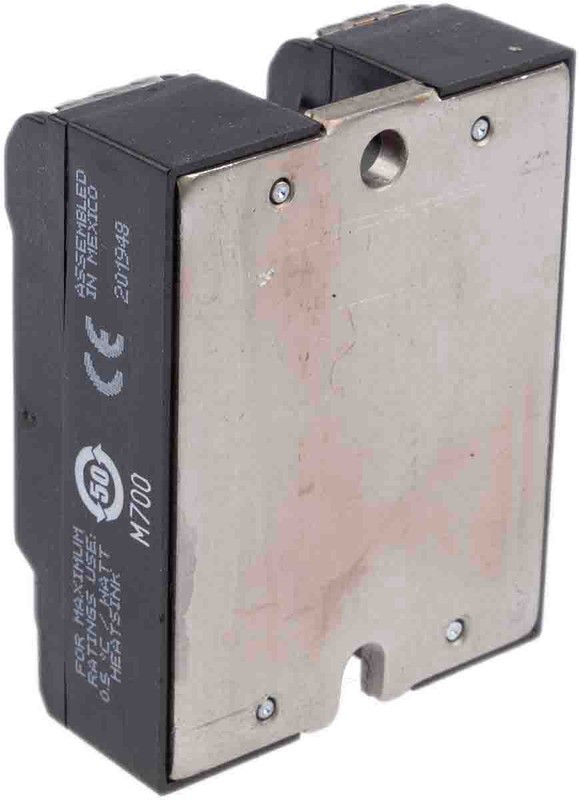

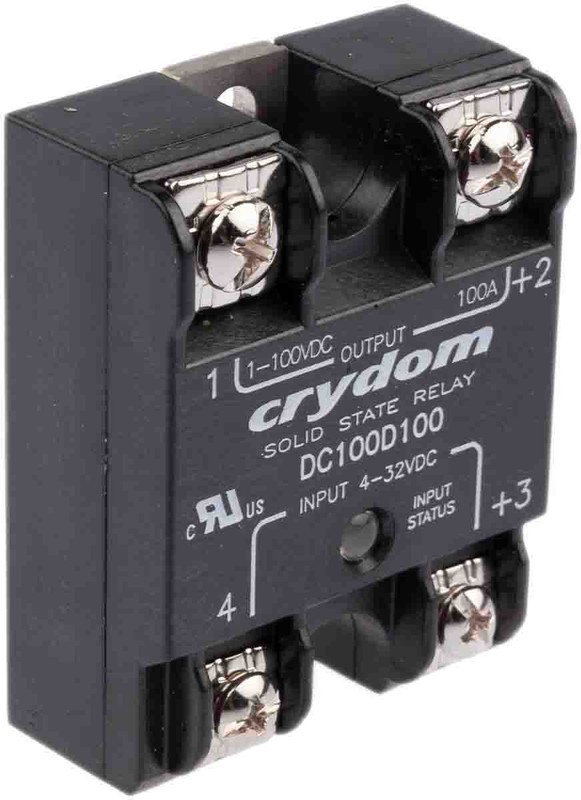

DC100D100, Solid State Relay, 100 A Load, Surface Mount, 72 V dc Load, 32 V dc Control
Оставить отзыв
В избранноеВ сравнение
Артикул: DC100D100
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Relays & Signal Conditioning\Relays\Solid State RelaysOptically Isolated MOSFET output AC and DC control Easily paralleled for higher-current applications
| Информация о производителе | |
| Производитель | Sensata Technologies |
| Бренд | Sensata Technologies |
| Основные | |
| contact configuration | SPST |
| contact form: | SPST(1 Form A) |
| control voltage range | 4 → 32 V dc |
| control voltage range: | 4 VDC to 32 VDC |
| Дата загрузки | 13.04.2024 |
| eccn (us) | ear99 |
| eu rohs | Compliant with Exemption |
| factory pack quantity: factory pack quantity: | 20 |
| input current: | 11 mA to 14 mA |
| input to output isolation method: | Optocoupler |
| input type | DC |
| ip rating: | IP00 |
| i/o isolation voltage (v) | 2500(RMS) |
| категория | Кнопки, переключатели, разъемы, реле/Реле |
| load current rating: | 100 A |
| load voltage range | 1 → 72V dc |
| load voltage rating: | 1 VDC to 100 VDC |
| manufacturer: | Sensata |
| maximum control voltage | 32 V dc |
| maximum input current (ma) | 12 |
| maximum input voltage (v) | 32 |
| maximum load current | 100 A |
| maximum load voltage | 72 V dc |
| maximum off-state leakage current (ua) | 150 |
| maximum operating temperature: | +100 C |
| maximum operating temperature (°c) | 80 |
| maximum output current (a) | 100 |
| maximum output voltage (v) | 72 |
| maximum turn-off time (ms) | 0.32 |
| maximum turn on time | 0.075ms |
| maximum turn-on time (ms) | 0.075 |
| minimum control voltage | 4 V dc |
| minimum input voltage (v) | 4 |
| minimum load current | 2.5 mA |
| minimum load current (ma) | 02.05.2024 |
| minimum load voltage | 1 V dc |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -30 |
| mounting | Screw |
| mounting style: | Panel Mount |
| mounting type | Surface Mount |
| off state leakage current | 0.15 mA |
| operating temperature range | -30 →+80°C |
| output device | MOSFET |
| output type | DC |
| output type: | MOSFET |
| package / case: | Hockey Puck |
| package height | 26 |
| package length | 45.2 |
| package style | Panel Mount |
| package width | 58.7 |
| партномер | 8788436693 |
| part status | active |
| pcb changed | 4 |
| peak non-repetitive surge current (a) | 272 |
| pin count | 4 |
| product: | Solid State Relays |
| product category: | Solid State Relays-Industrial Mount |
| product type: | SSR-Solid State Relays |
| relay contact form: | 1 Form A(SPST-NO) |
| series: | Power Plus DC |
| subcategory: | Relays |
| switching type | Instantaneous |
| terminal type | Screw |
| termination style: | Screw |
| type: | Isolated |
| typical input to output capacitance (pf) | 10(Max) |
| вес, г | 86 |
| Время загрузки | 21:04:32 |
