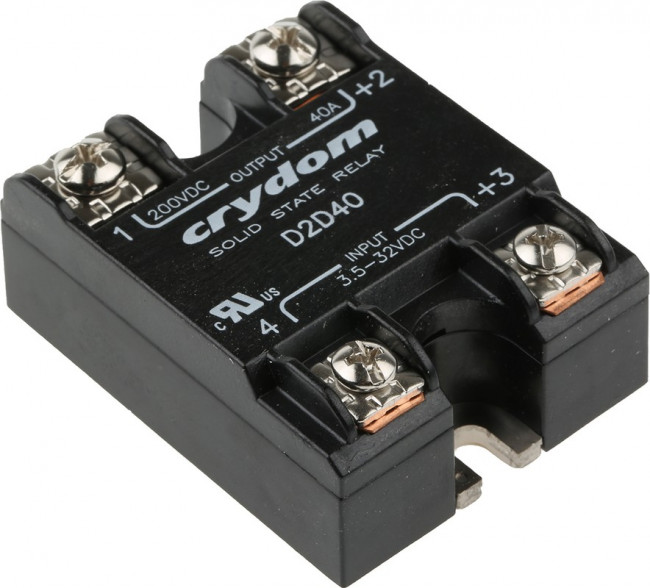

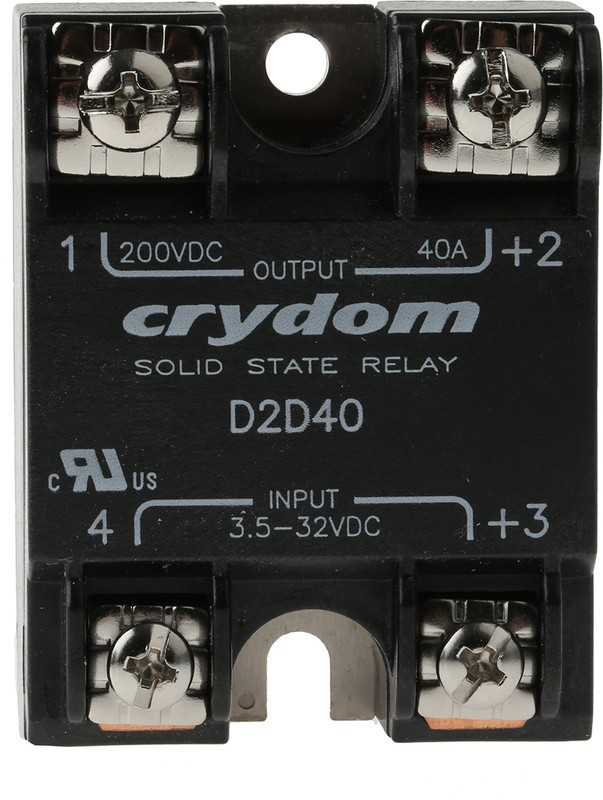

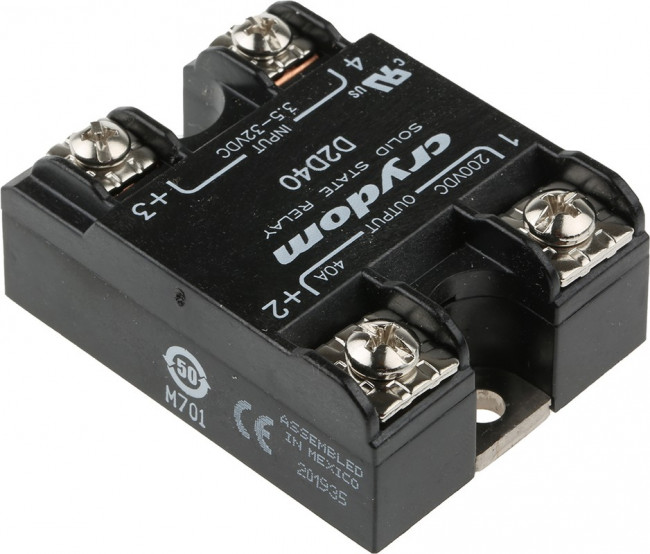

D2D40, Твердотельное реле, SPST-NO, 40 А, 200 В DC, Панель, Винт, DC Переключатель

Реле и Переключатели\Реле\Твердотельные Реле и Контакторы\Твердотельные Реле• MOSFET output• Epoxy-free design• UL94V-0 Flame-rated housing• 0.3mA Maximum off-state leakage current at rated voltage• 1mA Minimum load current• 1VDC Maximum on-state voltage drop at rated current• 0.68°C/W Thermal resistance junction to case• 1°C/W Minimum heat sink for rated current at 40°C• 2500Hz Maximum pulse wide modulation frequency• 3.5VDC Minimum turn-on voltage• 1VDC Minimum turn-off voltage• 3750VRMS Dielectric strength (input/output/base (50/60Hz))• 8pF Maximum capacitance (input/output)
