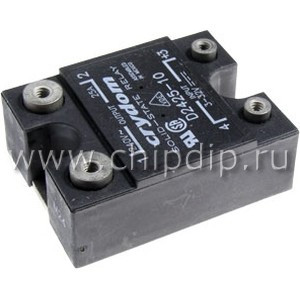

D2425-10, Твердотельное реле, SPST-NO, 25 А, 280 В AC, Панель, Винт, Произвольное Включение

Реле и Переключатели\Реле\Твердотельные Реле и Контакторы\Твердотельные РелеThe D242510 is a panel-mount Solid State Relay with screw terminals. The instantaneous turn-on switching solid state relay features SCR output for heavy industrial loads, redesigned housing with anti-rotation barriers and improved SEMS screw and washer. • Direct bond copper substrate• Direct power lead frame• Epoxy-free design• 600Vpk Transient overvoltage• 1mARMS Maximum off-state leakage current at rated voltage• 1.15VRMS Maximum on-state voltage drop at rated current• 0.8°C/W Junction-to-case thermal resistance• 4000VRMS (50/60Hz) Input/output/base dielectric strength• 10⁹R at 500VDC Minimum insulation resistance• 8pF Input/output maximum capacitance
