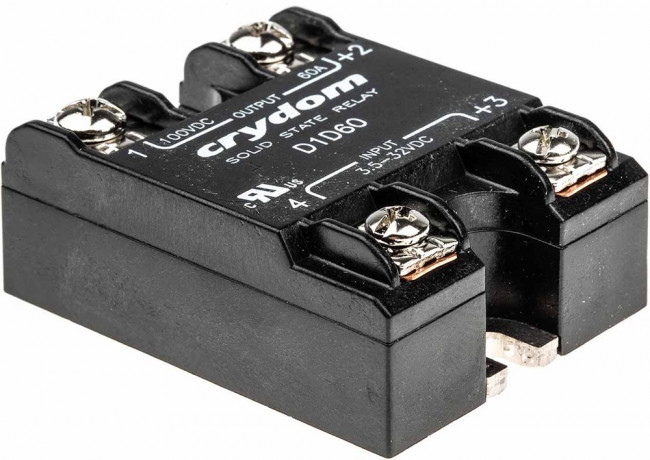

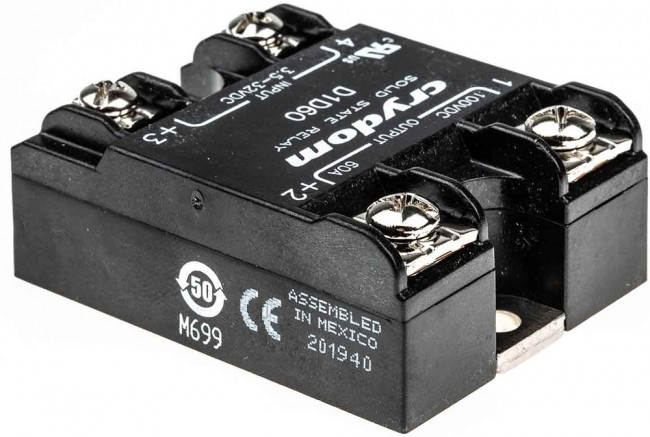

D1D60, Твердотельное реле, SPST-NO, 60 А, 100 В DC, Панель, Винт, DC Переключатель

Реле и Переключатели\Реле\Твердотельные Реле и Контакторы\Твердотельные РелеThe D1D60 is a panel-mount Solid State Relay with screw terminals and aluminum baseplate. The 1-DC series DC output solid state relay features redesigned housing with anti-rotation barriers and improved SEMS screw and washer. • MOSFET output• Epoxy-free design• UL94V-0 Flame-rated housing• 0.1mA Maximum off-state leakage current at rated voltage• 5mA Minimum load current• 0.6VDC Maximum on-state voltage drop at rated current• 0.34°C/W Thermal resistance junction to case• 1°C/W Minimum heat sink for rated current at 40°C• 1000Hz Maximum pulse wide modulation frequency• 3.5VDC Minimum turn-on voltage• 1VDC Minimum turn-off voltage• 3750VRMS Dielectric strength (input/output/base (50/60Hz))• 8pF Maximum capacitance (input/output)
