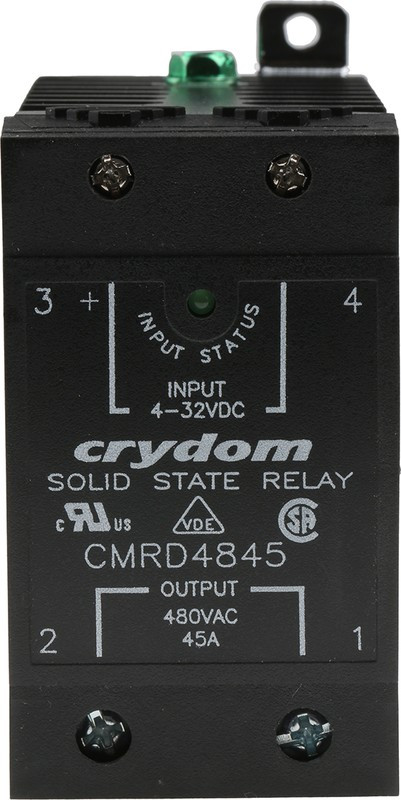

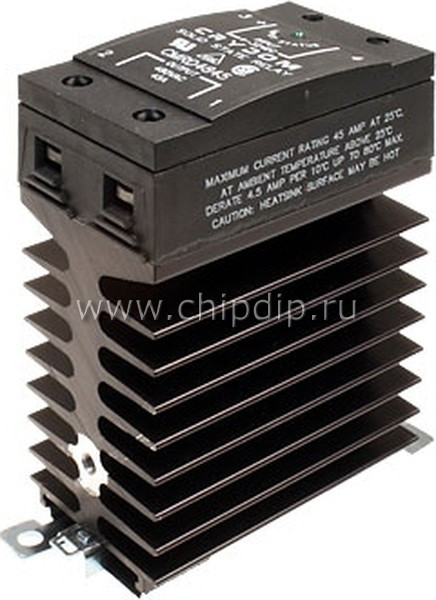

CMRD4845, Твердотельное реле, SPST-NO, 45 А, 530 В СКЗ, DIN-рейка, Зажимная Клетка, Переход Через Нуль

Реле и Переключатели\Реле\Твердотельные Реле и Контакторы\Твердотельные РелеThe CMRD4845 is a Solid State Relay with thermally conductive epoxy encapsulation, SPST-NO contact, zero crossing switching mode and cage box clamp terminals. This CMR-series DIN-rail-mount relay features LED status indicator and integral heat-sink eliminates need for thermal calculations. • Finger-proof easy-to-use• 8 to 12AWG Maximum wire size• Green LED status indicator display• AC or DC Control• SCR output for heavy industrial loads• 1.7Vpk Maximum on-state voltage drop• 4000Vrms Dielectric strength• 1/2ms Turn-on/off maximum time• -40 to 80°C Ambient operating temperature range
