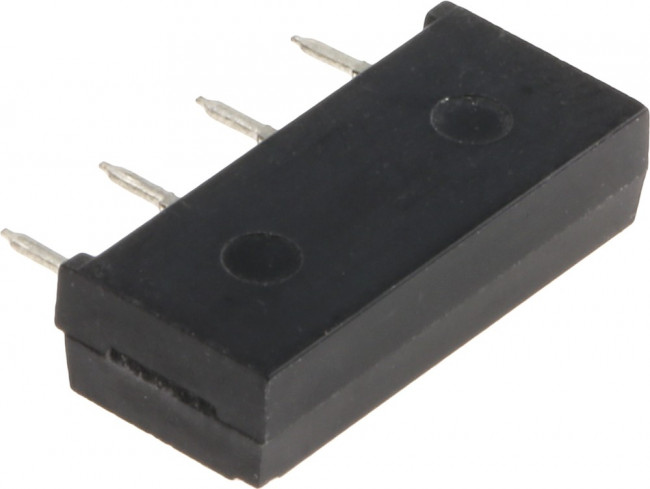

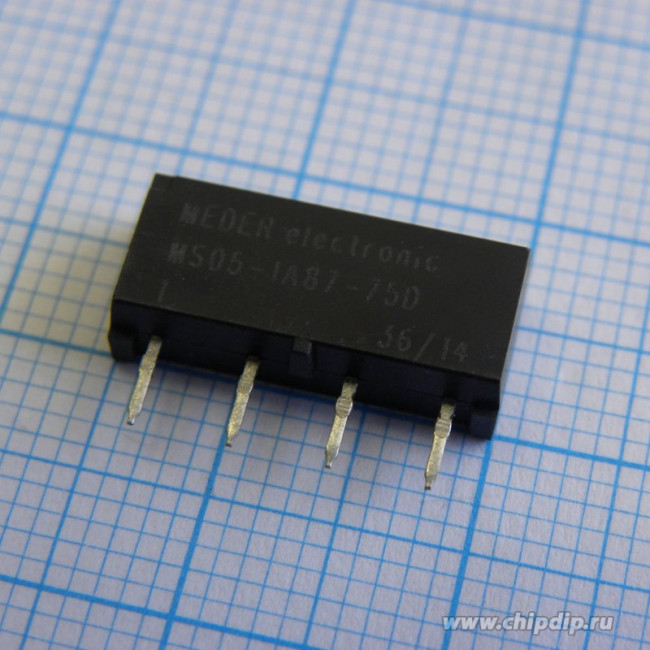

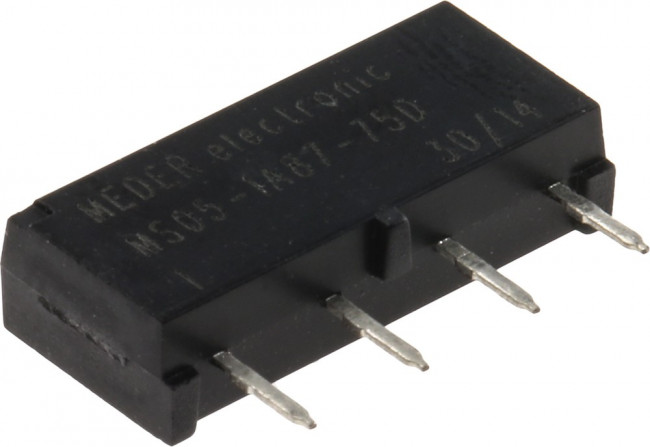

MS05-1A87-75D

ЭлектроэлементRELAY, REED, SPST-NO, 200V, 0.5A, THT; Contact Configuration:SPST-NO; Coil Voltage:5VDC; Product Range:MS Series; Relay Mounting:Through Hole; Coil Resistance:280ohm; Switching Current Max:500mA; Switching Voltage Max:200V; SVHC:No SVHC (15-Jan-2018); Coil Voltage Max:7.5VDC; Coil Voltage VDC Nom:5V; Contact Current AC Max:500mA; Contact Current DC Max:500mA; Contact Current Rating:1A; Contact Resistance:150mohm; Contact Voltage AC Max:200V; Contact Voltage DC Max:200V; External Depth:3.81mm; External Height:6.8mm; External Length / Height:6.8mm; External Width:15.2mm; No. of Pins:4Pins; Operating Temperature Max:70В°C; Operating Temperature Min:-20В°C; Operating Time:0.5ms; Release Time:0.1ms; Switch Current Max:500mA; Switch Power Max:10W
