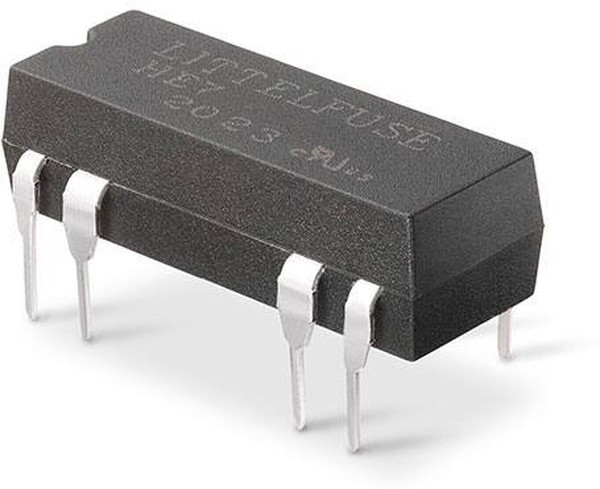

Electromechanical > Relays & I/O Modules > Reed Relays Миниатюрный герконовый переключатель с двумя линиями HE700, SIL
Информация о производителе
Производитель
Hamlin
Бренд
Littelfuse
Основные
california prop 65
Warning Information
category
Relays
coil current
10mA
coil power
-
coil resistance
500 Ohms
coil type
Non Latching
coil voltage
5VDC
contact configuration
SPNO
contact form
SPST-NO (1 Form A)
contact material
-
contact rating (current)
500mA
contact resistance
150 mΩ
Дата загрузки
14.04.2024
длина
20.14мм
eccn
EAR99
family
Signal Relays, Up to 2 Amps
features
Diode
глубина
5.82мм
htsus
8536.41.0030
isolation coil to contact
500V ac
категория
Кнопки, переключатели, разъемы, реле/Реле
maximum operating temperature
+85°C
maximum switching current dc
500 mA
maximum switching power dc
10 W
maximum switching voltage dc
200V
minimum operating temperature
-40°C
moisture sensitivity level (msl)
1 (Unlimited)
mounting type
Through Hole
must operate voltage
3.75 VDC
must release voltage
0.5 VDC
number of poles
1
online catalog
700 Series
operate time
1ms
operating temperature
-40В°C ~ 85В°C
operating temperature range
-40 →+85°C
operating time including bounce
1ms
other names
HE101
other related documents
Handling Of Reed Sensors, Relays, Switches App Note
package
Tube
packaging
Tube
партномер
8003312670
размеры
20.14 x 7.62 x 5.82мм
relay type
Reed
release time
1ms
rohs status
ROHS3 Compliant
series
HE700 ->
сопротивление контакта
150мОм
standard package
25
switching voltage
200VDC - Max
terminal type
PCB Pin
termination style
PC Pin
Время загрузки
19:19:31
Ширина
7.62 мм
