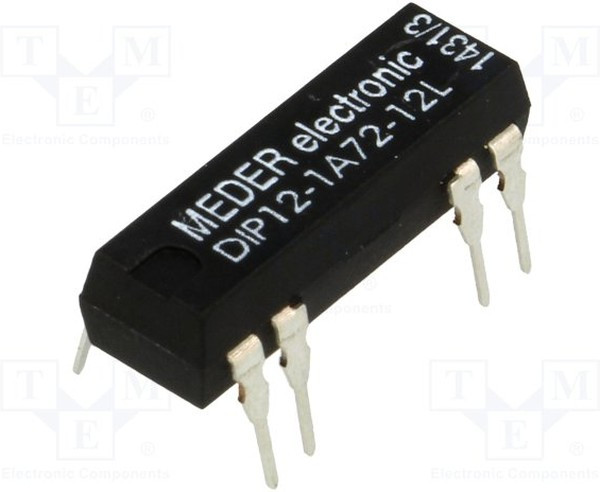

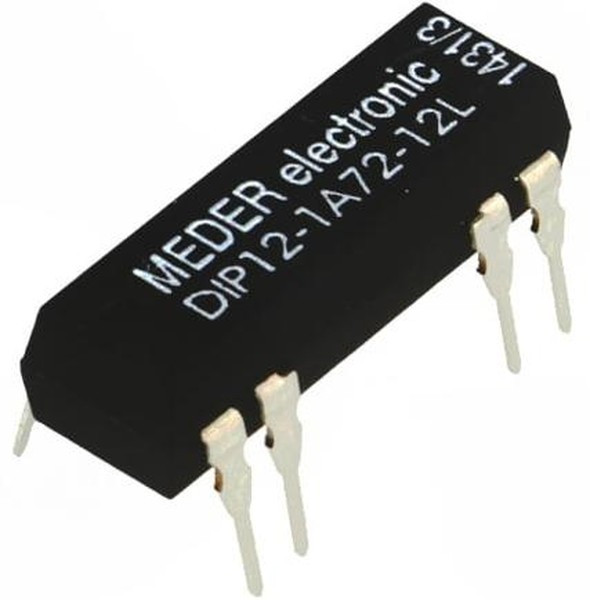

DIP12-1A72-12L

ЭлектроэлементRELAY, REED, SPST-NO, 200V, 0.5A, THT; Contact Configuration:SPST-NO; Coil Voltage:12VDC; Product Range:DIP Series; Relay Mounting:Through Hole; Coil Resistance:1kohm; Switching Current Max:500mA; Switching Voltage Max:200V; SVHC:No SVHC (15-Jun-2015); Approval Bodies:UL; Coil Voltage Max:16VDC; Coil Voltage VDC Nom:12V; Contact Current AC Max:1A; Contact Current DC Max:1A; Contact Current Rating:1.25A; Contact Resistance:150mohm; Contact Voltage AC Max:200V; Contact Voltage DC Max:200V; External Depth:7mm; External Height:7.5mm; External Length / Height:7.5mm; External Width:19.3mm; No. of Pins:8Pins; Operating Temperature Max:70В°C; Operating Temperature Min:-20В°C; Operating Time:0.5ms; Release Time:0.1ms; Switch Current Max:1A; Switch Power Max:20W
