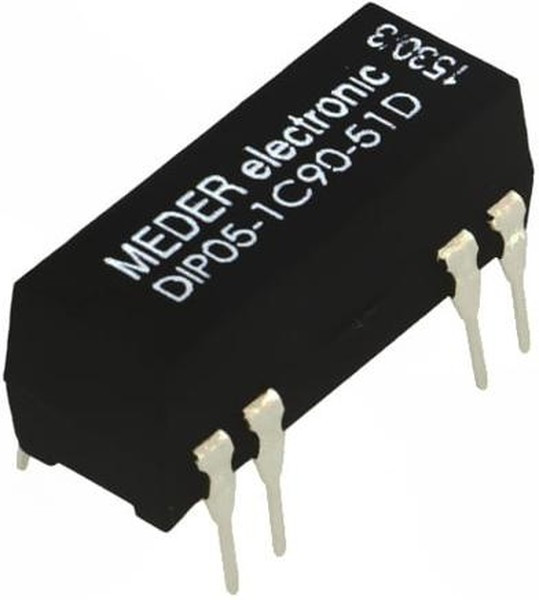

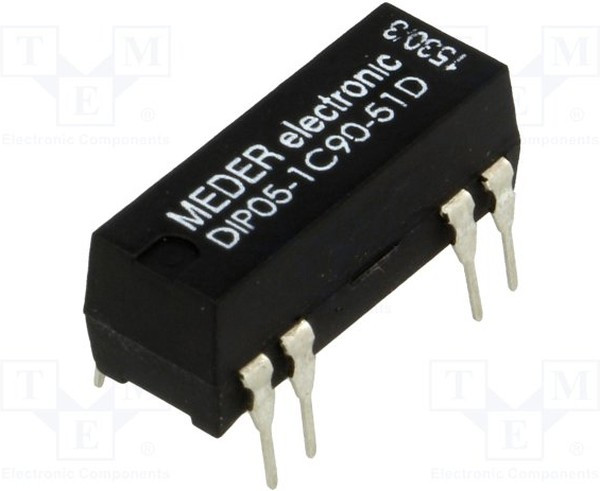

DIP05-1C90-51D

ЭлектроэлементRELAY, REED, SPDT, 100V, 0.2A, THT; Contact Configuration:SPDT; Coil Voltage:5VDC; Product Range:DIP Series; Relay Mounting:Through Hole; Coil Resistance:200ohm; Switching Current Max:200mA; Switching Voltage Max:100V; SVHC:No SVHC (15-Jan-2018); Approval Bodies:UL; Coil Voltage Max:7.5VDC; Coil Voltage VDC Nom:5V; Contact Current AC Max:250mA; Contact Current DC Max:250mA; Contact Current Rating:1.2A; Contact Resistance:150mohm; Contact Voltage AC Max:175V; Contact Voltage DC Max:175V; External Depth:7mm; External Height:7.5mm; External Length / Height:7.5mm; External Width:19.3mm; No. of Pins:8Pins; Operating Temperature Max:70В°C; Operating Temperature Min:-20В°C; Operating Time:0.7ms; Release Time:1.5ms; Switch Current Max:250mA; Switch Power Max:3W
