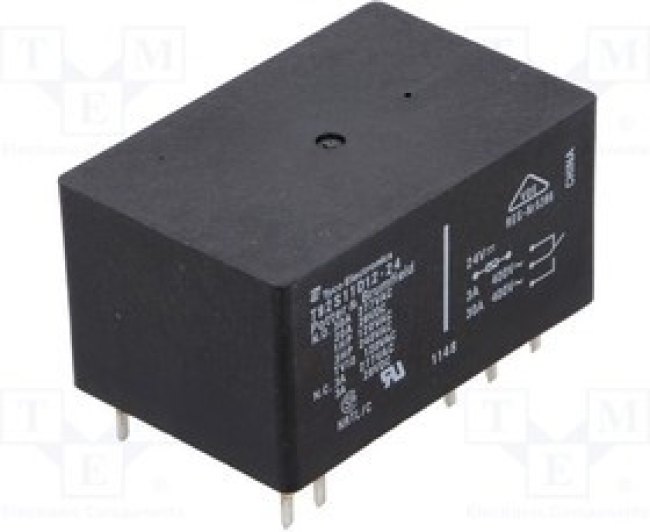

T92S11D12-24, Power Relay 24VDC 40(NO)/3(NC)A DPDT(52.32x34.54x30.73)mm THT

The T92S11D12-24 is a general-purpose High Power Relay with non-latching DC coil. This 9-1393211-0 panel mount high power relay has 2-form-C (DPDT) AgCdO contact and PCB terminals. Designed to control compressor loads to 3.5 tons, 110LRA/25.3FLA. Meets requirements of UL 508 and UL 873 spacing - 8mm through air, 9.5mm over surface, VDE 8mm spacing, 4kV dielectric coil-to-contact and UL class-F construction. • Wash-tight, tape sealed, plastic case enclosure• 1500Vrms Initial dielectric strength between open contacts• -55 to 85°C Ambient temperature range
