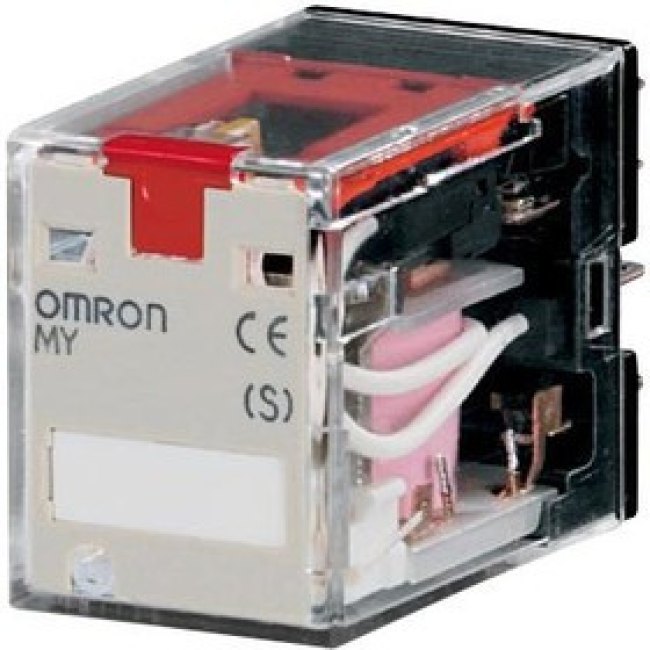

MY4IN-100/120ACS

ЭлектроэлементRELAY, 4PDT, 250VAC, 30VDC, 5A; Contact Configuration:4PDT; Coil Voltage:120VAC; Contact Current:5A; Product Range:MY Series; Relay Mounting:Socket; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Quick Connect; Contact Voltage VDC:30VDC; Contact Material:Silver Alloy; Coil Resistance:4.43kohm; AC Coil Power:1.2VA; Approval Bodies:CSA, UL, VDE; Approvals & Standards:CSA, UL; Coil Current:10.8mA; Coil Operating Lower Percent Limit:80%; Coil Operating Upper Percent Limit:110%; Coil Voltage VAC Nom:120V; Contact Current AC Max:5A; Contact Current DC Max:5A; Contact Current Max:5A; Contact Voltage AC Max:250V; Contact Voltage AC Nom:250V; Contact Voltage DC Max:30V; Contact Voltage DC Nom:30V; DC Coil Power:0.9W; External Depth:36mm; External Height:28mm; External Length / Height:28mm; External Width:21.5mm; Nom Operating Power:1.1VA; Operating Temperature Max:70В°C; Operating Temperature Min:-55В°C; Operating Time:20ms; Relay Type:Power; Release Time:20ms
