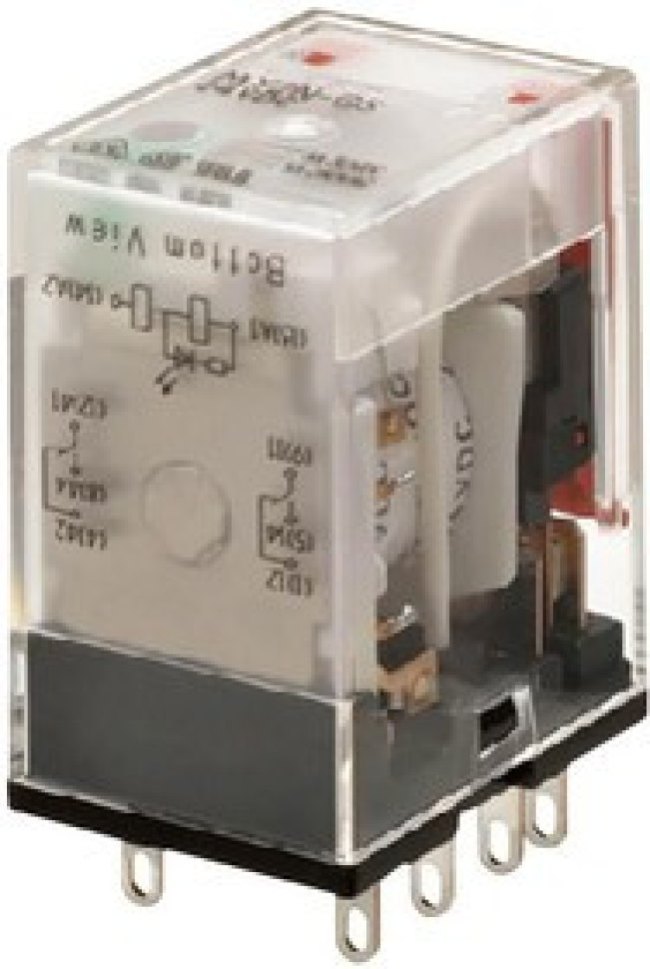

MY2-GS DC24, Реле питания, DPDT, 24 В DC, 5 А, MY-GS Series, Гнездо, Без Защелки

Реле и Переключатели\Реле\Силовые Реле• High electrical durability helps reduce the maintenance frequency• Without latching lever, number of poles are 2, standard approvals are UL, CSA, CQC• Built-in mechanical indicators, number of pins are 8• Standard coil surge absorption• Voltage rating of 24VDC, rated current of 36.3 (37.7)mA (50Hz)• Single contact structure• Contact configuration and structure is DPDT single, material is silver (Ag)• Operating ambient temperature range from -55 to 70°C, malfunction shock resistance is 20G• Weight is approximately 35g, minimum load is 1mA at 5VDC• Maximum switching capacity is 1750VA/210W (resistive load), 440VA/48W (inductive load)
