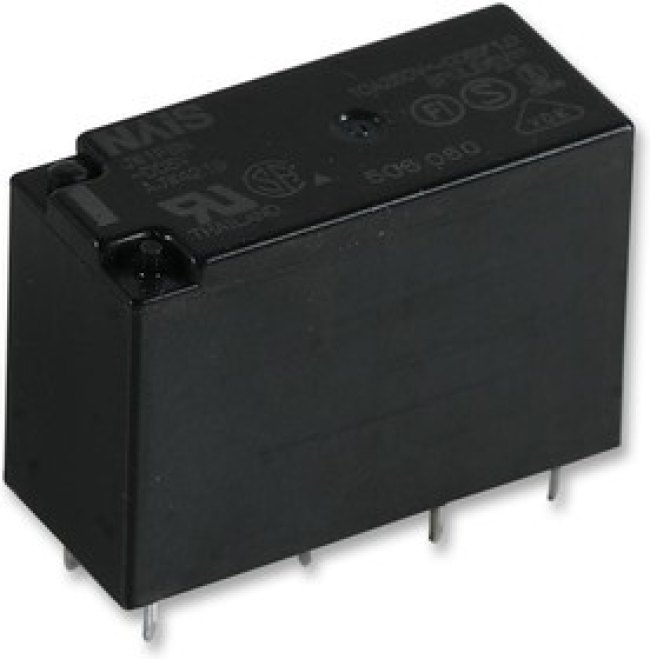

JW1FSN-DC12V, General Purpose Relays 10A 12VDC SPDT SEALED PCB

The JW1FSN-DC12V is a PCB mount compact Power Relay with DC coil. This JW-series power relay has 1 form-C Ag alloy contact. Miniature package with universal terminal footprint, high dielectric withstanding for transient protection 10000V surge in µs between coil and contact. Class E insulation and VDE, TÜV, SEMKO, SEV, FIMKO, TV-5 also approved. • High capacity type• Sealed construction• 70% of nominal voltage• 530mW Nominal operating power
