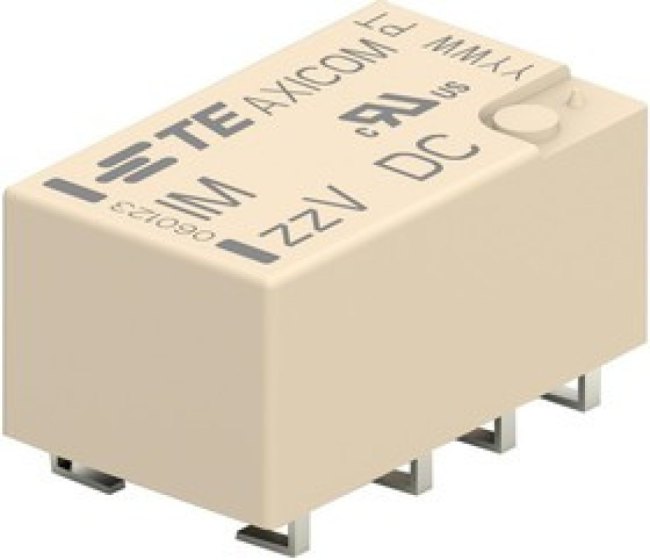

IM06JR

ЭлектроэлементRELAY, SIGNAL, DPDT, 250VAC, 220VDC, 2A; Coil Voltage:12VDC; Contact Configuration:DPDT; Contact Current:2A; Product Range:IM Series; Relay Mounting:SMD; Coil Type:Non Latching; Relay Terminals:Solder; Contact Voltage VAC:250V; Contact Voltage VDC:220V; Contact Material:Palladium Ruthenium; Coil Resistance:1.029kohm; SVHC:No SVHC (15-Jan-2019); Coil Power Continuous:140mW; Coil Voltage VDC Nom:12V; Contact Current AC Max:2A; Contact Current DC Max:2A; Contact Current Max:2A; Contact Voltage AC Max:250V; Contact Voltage AC Nom:250V; Contact Voltage DC Max:220V; Contact Voltage DC Nom:220V; External Depth:10mm; External Height:5.65mm; External Length / Height:5.65mm; External Width:6mm; Nom Operating Power:140mW; Operating Voltage Range:9V to 28.9V; Relay Type:General Purpose
