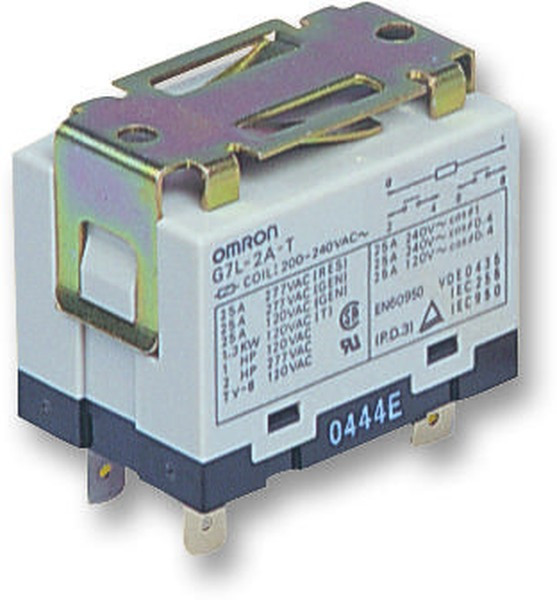

G7L-2A-TUB DC12, Универсальное реле, серия G7L, силовое, без защелки, DPST-NO, 12В DC, 25А

Реле и Переключатели\Реле\Силовые РелеThe Omron G7L series are PCB power relays. These electromechanical power relays are high capacity, high dielectric strength relay and compatible with momentary voltage drops. The G7L series relays are available in single pole, double pole models. These relays are used in wide variety of applications such as compressors, switching controllers, power controllers, lamp controls, motor drivers, power supply and lighting controllers. • No contact chattering for momentary voltage drops up to 50% of rated voltage• Miniature size for maximum switching power, particularly for inductive loads• Flame resistance materials (UL94V-0-qualifying) used for all insulation material• Quick connect, screw and PCB terminals and DIN track mounting available• Conforms to UL, CSA, TUV and meets IEC950 standards• Safety design with contact gap of 3mm• SPST-NO, DPST-NO contact configurations• Selectable DC coil voltage of 6VDC, 12VDC, 24VDC, 48VDC, 100VDC• Selectable AC coil voltage of 12VAC, 24VAC, 100/120VAC, 200/240VAC• Available in 30A, 25A and 20A at 250VAC switching current based on models
