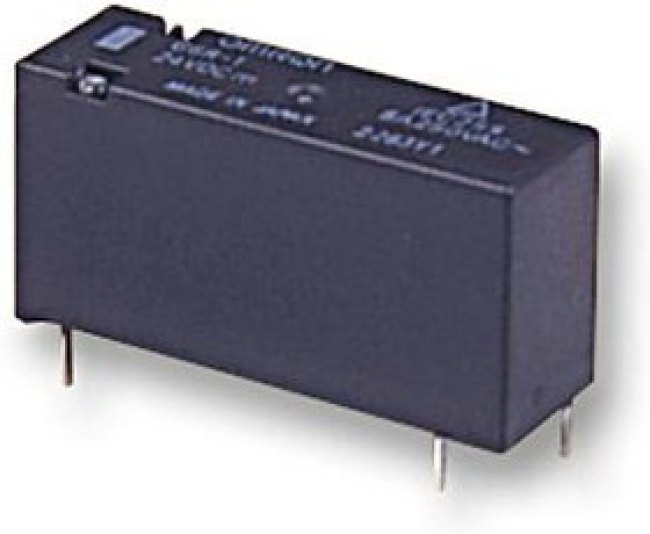

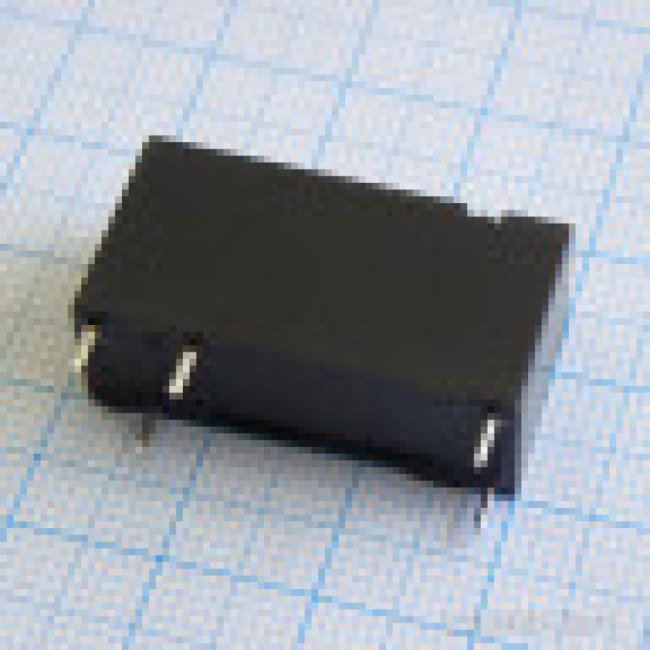

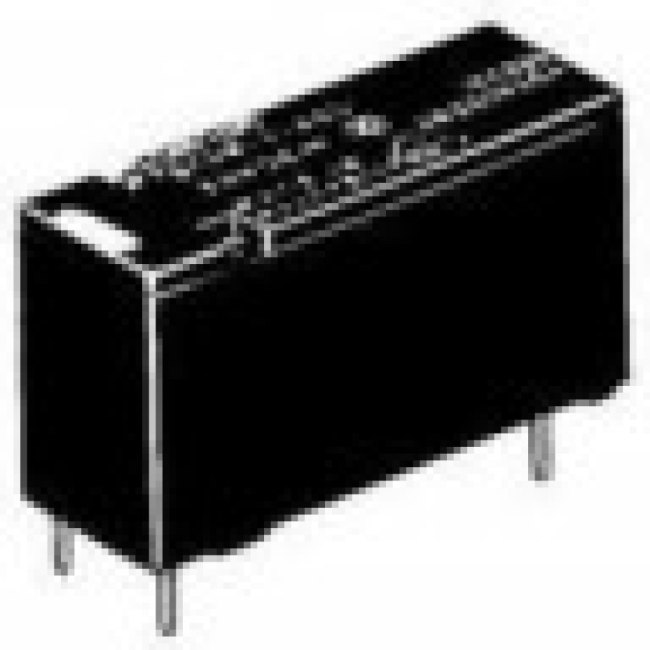

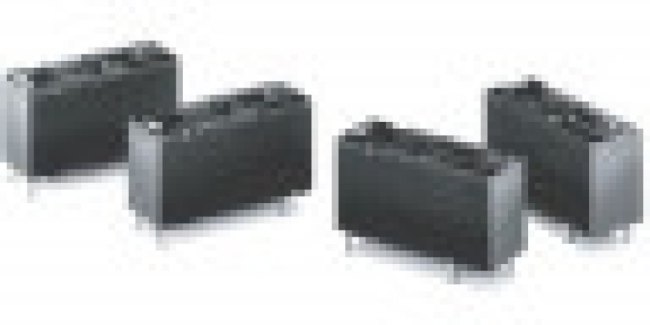

G6RN15DC, (G6RN-1 5DC)

Реле электромеханические и DC контакторыRELAY, SPDT, 250VAC, 8A; Contact Configuration:SPDT; Coil Voltage:5VDC; Contact Current:8A; Product Range:G6RN Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Solder; Contact Voltage VDC:-; Contact Material:Silver Alloy; Coil Resistance:114ohm; Coil Current:43.9mA; Coil Voltage VDC Nom:5V; Contact Current Max:8A; Contact Voltage AC Nom:250V; Contact Voltage DC Nom:30V; External Depth:10mm; External Height:15mm; External Width:28.5mm; Nom Operating Power:220mW; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Relay Type:Power
