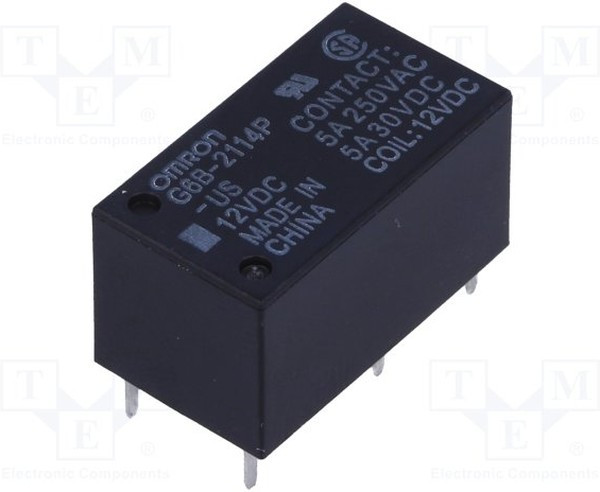

G6B2114PUS12DC

Реле электромеханические и DC контакторыRELAY, 1NO, 1NC, 250VAC, 30VDC, 5A; Contact Configuration:SPST-NO, SPST-NC; Coil Voltage:12VDC; Contact Current:5A; Product Range:G6B Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Solder; Contact Voltage VDC:30VDC; Contact Material:Silver Alloy; Coil Resistance:720ohm; Approvals & Standards:CSA, UL; Coil Current:16.7mA; Coil Voltage VDC Nom:12V; Contact Current Max:5A; Contact Voltage AC Nom:250V; Contact Voltage DC Nom:30V; External Depth:20mm; External Height:10mm; External Width:10mm; Nom Operating Power:200mW; Relay Type:Power
