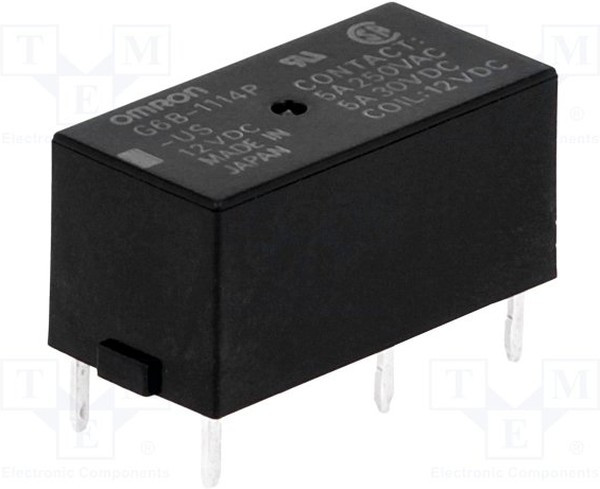

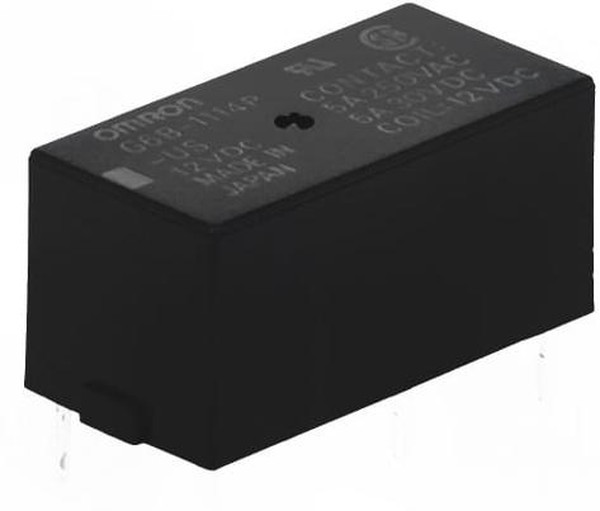

G6B1114PUS12DC

Реле электромеханические и DC контакторыRELAY, SPST-NO, 250VAC, 30VDC, 5A; Contact Configuration:SPST-NO; Coil Voltage:12VDC; Contact Current:5A; Product Range:G6B Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Solder; Contact Voltage VDC:30VDC; Contact Material:Silver Alloy; Coil Resistance:720ohm; Approval Bodies:CSA, UL; Approvals & Standards:CSA, UL; Coil Current:16.7mA; Coil Operating Lower Percent Limit:80%; Coil Operating Upper Percent Limit:110%; Coil Voltage VDC Nom:12V; Contact Current AC Max:5A; Contact Current DC Max:5A; Contact Current Max:5A; Contact Voltage AC Max:250V; Contact Voltage AC Nom:250V; Contact Voltage DC Max:30V; Contact Voltage DC Nom:30V; DC Coil Power:200mW; External Depth:10mm; External Height:20mm; External Length / Height:20mm; External Width:10mm; Nom Operating Power:200mW; Operating Temperature Max:70°C; Operating Temperature Min:-25°C; Operating Time:10ms; Relay Type:Power; Release Time:10ms
