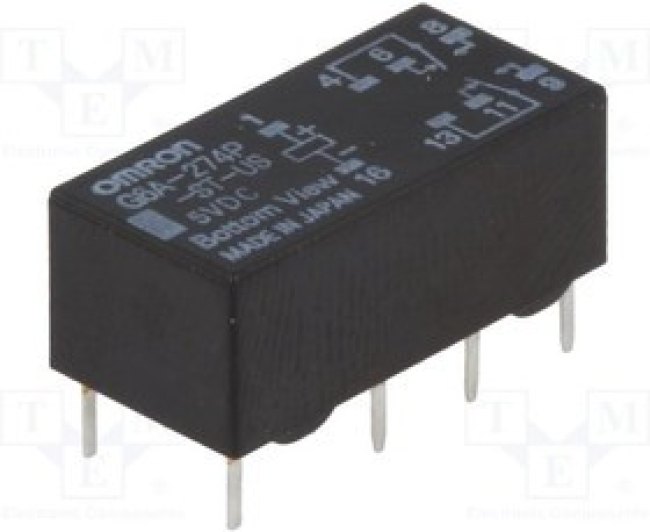

G6A274PSTUS5DC

ЭлектроэлементRELAY, SIGNAL, DPDT, 30VDC, 2A; Coil Voltage:5VDC; Contact Configuration:DPDT; Contact Current:2A; Product Range:G6A Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Relay Terminals:Solder; Contact Voltage VAC:-; Contact Voltage VDC:30V; Contact Material:Silver; Coil Resistance:125ohm; Approvals & Standards:CSA, UL; Coil Current:40mA; Coil Power Continuous:200mW; Coil Voltage VDC Nom:5V; Contact Current Max:2A; Contact Voltage AC Nom:250V; Contact Voltage DC Nom:220V; External Depth:20.2mm; External Height:8.4mm; External Width:20.2mm
