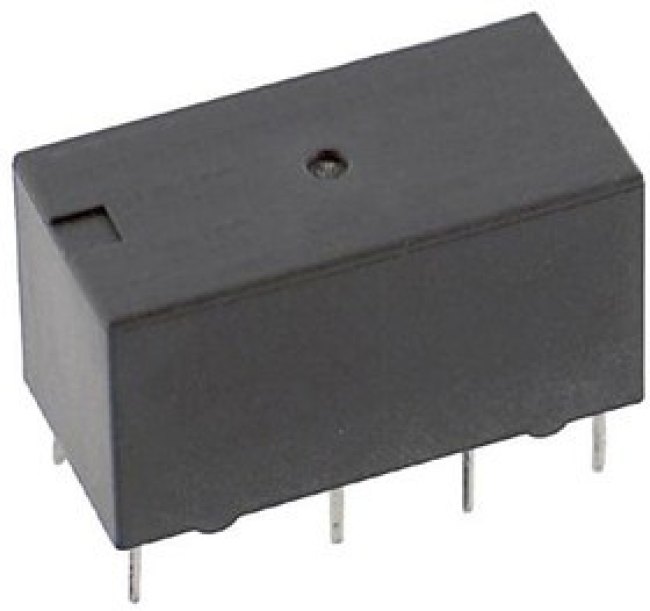

G5V-2-H-DC24, Low Signal Relays - PCB ThruHole Sealed 2A DPDT 24VDC 360mW

Relays and I/O Modules\Reed RelaysThe Omron G5V-2 series are through hole signal relays. These electromechanical signal relays are general purpose, low cost, two pole relays for signal circuits. It offers high dielectric strength at 1000VAC between coil and contacts and 750VAC between contacts of the same polarity. The G5V-2 Series are available standard and high sensitivity models. These relays are mainly used in telecommunication and security equipments. • DIL terminal layout• Wide switching power of 10µA to 2A• Fully sealed type relays standardized with bifurcated crossbar contacts• Highly reliable in addition to its high environment resistance• Impulse withstand voltage of 1.500V for 10 x 160µs between coil and contacts• UL and CSA standard approved• DPDT contact configuration• Selectable DC coil voltage of 3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 24VDC, 48VDC• Maximum switching capacity of 0.5A at 125VAC and 2A or 1A at 30VDC
