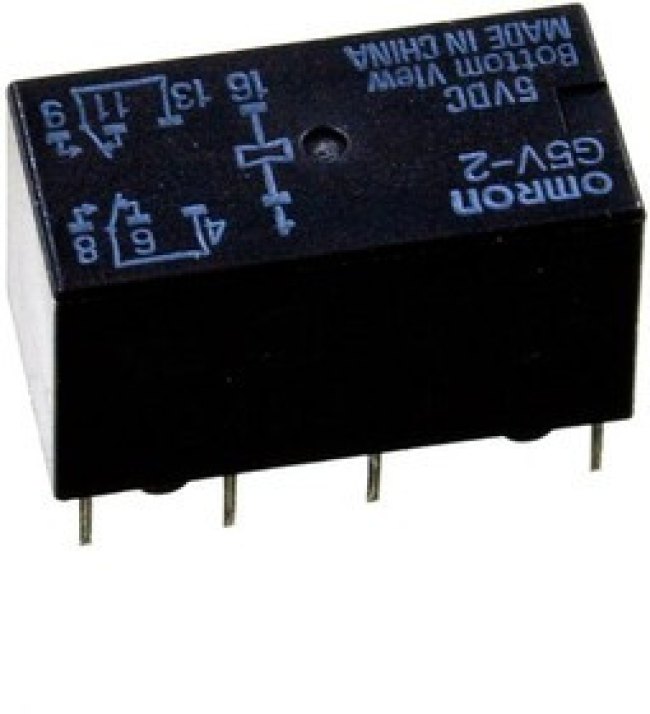

G5V-2-DC5

ЭлектроэлементRELAY, SIGNAL, DPDT, 30VDC, 2A; Coil Voltage:5VDC; Contact Configuration:DPDT; Contact Current:2A; Product Range:G5V-2 Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Relay Terminals:Solder; Contact Voltage VAC:125V; Contact Voltage VDC:30V; Contact Material:Silver; Coil Resistance:50ohm; Approval Bodies:CSA, UL; Approval Category:FCC Part 68; Approvals & Standards:CSA, UL; Coil Current:100mA; Coil Power Continuous:500mW; Coil Voltage VDC Nom:5V; Contact Current AC Max:500mA; Contact Current Max:2A; Contact Voltage AC Nom:125V; Contact Voltage DC Nom:30V; External Depth:10.1mm; External Height:11.5mm; External Width:20.5mm; Operating Temperature Max:65°C; Operating Temperature Min:-25°C; Operating Time:7ms; Release Time:3ms; Switching Current Max:2A
