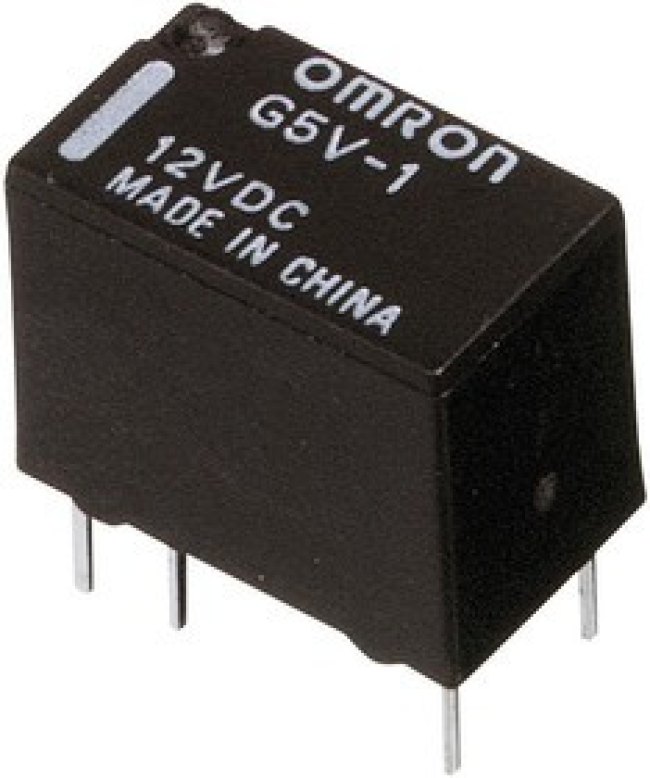

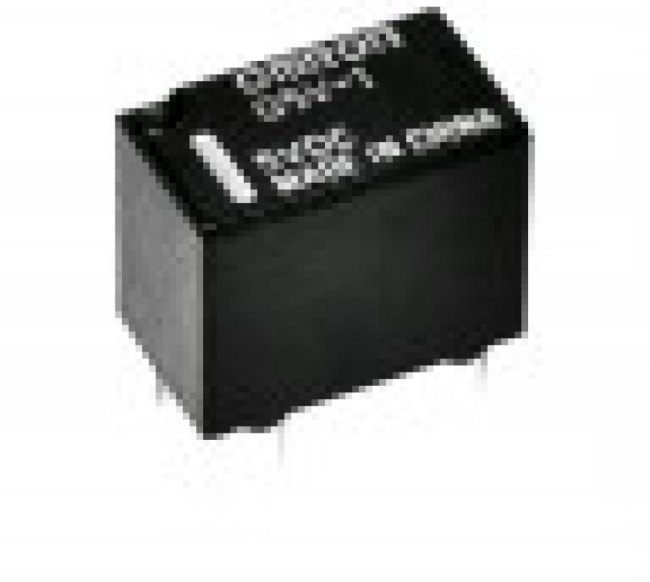

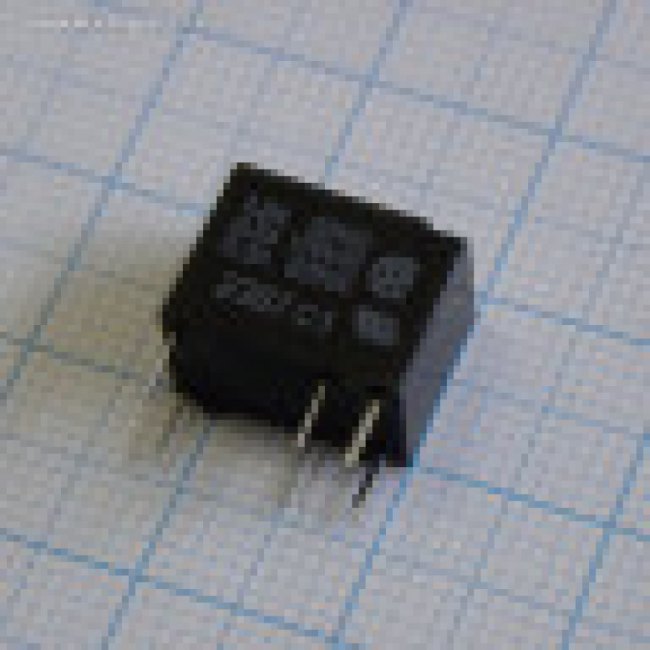

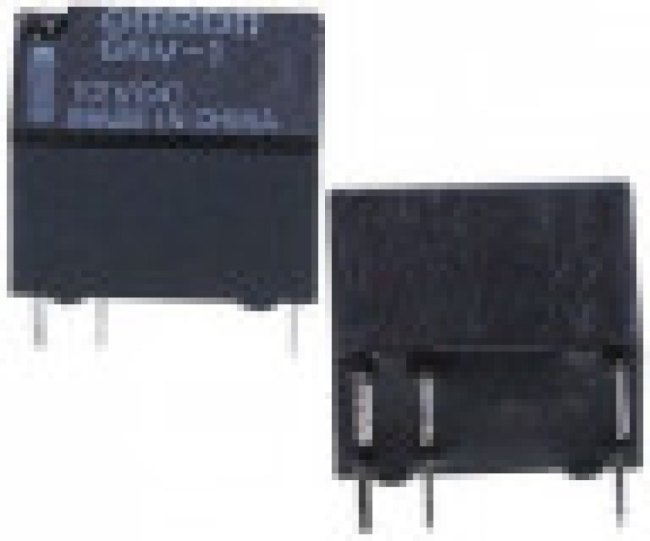

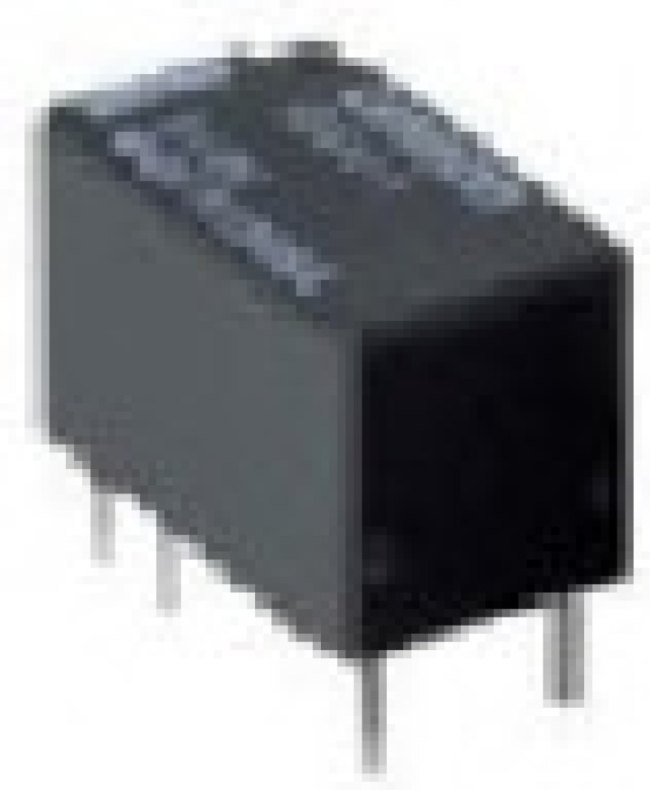

G5V-1-12DC

ЭлектроэлементRELAY, SIGNAL, SPDT, 24VDC, 1A; Coil Voltage:12VDC; Contact Configuration:SPDT; Contact Current:1A; Product Range:G5V-1 Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Relay Terminals:Solder; Contact Voltage VAC:-; Contact Voltage VDC:24V; Contact Material:Silver Gold; Coil Resistance:960ohm; Approval Bodies:CSA, UL; Approval Category:FCC Part 68; Approvals & Standards:CSA, UL; Coil Current:12.5mA; Coil Power Continuous:150mW; Coil Voltage VDC Nom:12V; Contact Current AC Max:500mA; Contact Current Max:1A; Contact Voltage AC Nom:125V; Contact Voltage DC Nom:24V; External Depth:7.5mm; External Height:10mm; External Width:12.5mm; Operating Temperature Max:70°C; Operating Temperature Min:-40°C; Operating Time:5ms; Release Time:5ms
