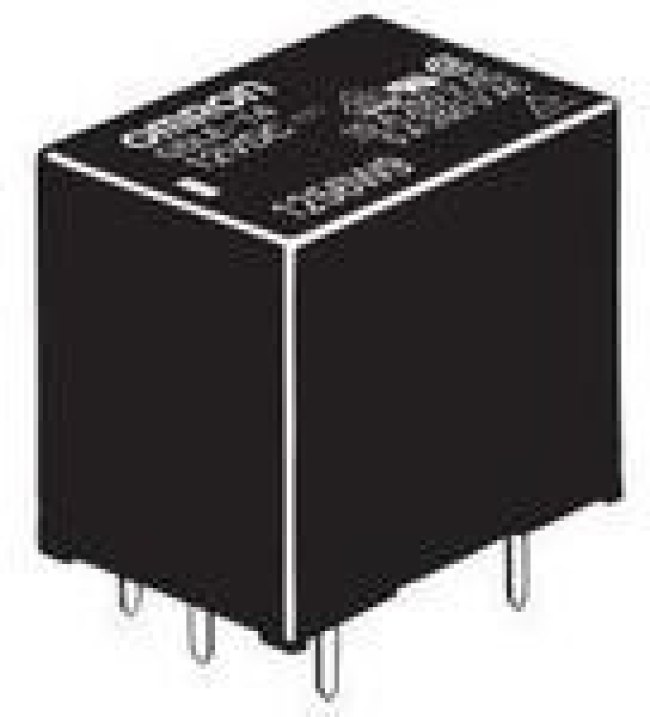

G5LE1A4DC12

ЭлектроэлементRELAY, SPST-NO, 250VAC, 30VDC, 10A; Contact Configuration:SPST-NO; Coil Voltage:12VDC; Contact Current:10A; Product Range:G5LE Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Solder; Contact Voltage VDC:30VDC; Contact Material:Silver Tin Oxide; Coil Resistance:360ohm; Approvals & Standards:CSA, IEC, UL, VDE; Coil Current:33.3mA; Coil Voltage VDC Nom:12V; Contact Current Max:10A; Contact Voltage AC Nom:250V; Contact Voltage DC Nom:125V; External Depth:22.5mm; External Height:19mm; External Width:16.5mm; Nom Operating Power:400mW; Relay Type:Power
