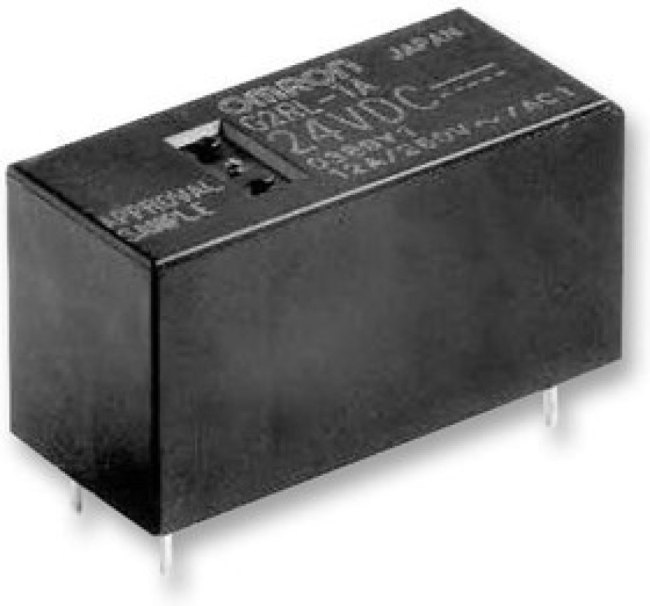

G2RL-24-CF- DC24, Универсальное реле, серия G2RL, силовое, без защелки, DPDT, 24В DC, 1.5А

Реле и Переключатели\Реле\Силовые РелеThe G2RL-24-CF-DC24 is a fully sealed Power PCB Relay with AgNi cadmium-free contacts, DPDT contact configuration and through-hole PCB straight termination. The G2RL series general-purpose high-capacity low profile power relay is ideal for incorporation in miniature equipment. • High capacity• Cadmium-free contacts ensuring environment-friendly use• Class F coil insulation• 8A at 250VAC/30VDC Rated resistive load• 400mW Coil power consumption• 5000VAC Dielectric strength (AC for 1 minute)• 10000V Impulse withstanding voltage• 100mR Maximum contact resistance• 1000MR Minimum insulation resistance
