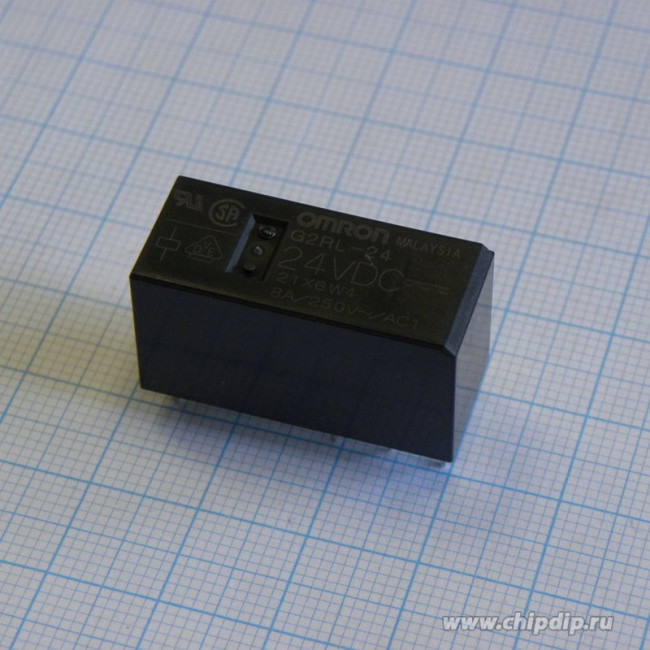

G2RL-24-24DC, реле 2FormC 24В 8А/250В 29х13х15.7мм (RM94-1012-35-1024)

реле электромагнитныеRELAY, DPDT, 250VAC, 30VDC, 1.5A; Contact Configuration:DPDT; Coil Voltage:24VDC; Contact Current:8A; Product Range:G2RL Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Solder; Contact Voltage VDC:30VDC; Contact Material:Silver Nickel; Coil Resistance:1.44kohm; Approvals & Standards:CE, UL, VDE; Coil Current:16.7mA; Coil Voltage VDC Nom:24V; Contact Current Max:8A; Contact Voltage AC Nom:440V; Contact Voltage DC Nom:300V; External Depth:29mm; External Height:15.7mm; External Width:12.7mm; Nom Operating Power:400mW; Relay Type:Power - General Purpose
