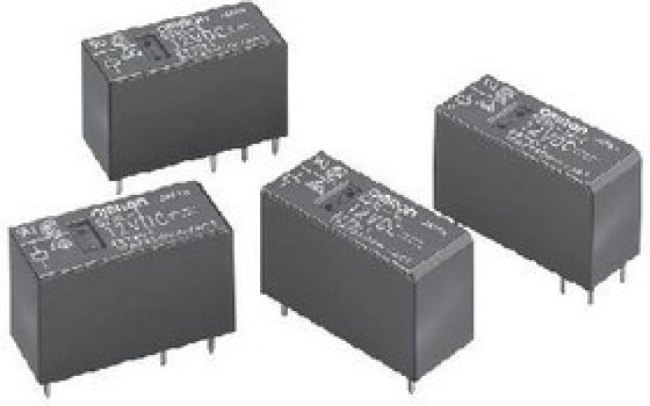

G2RL-14-E5DC

ЭлектроэлементRELAY, SPDT, 240VAC, 24VDC, 3A; Contact Configuration:SPDT; Coil Voltage:5VDC; Contact Current:16A; Product Range:G2RL Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Solder; Contact Voltage VDC:24VDC; Contact Material:Silver Tin Oxide; Coil Resistance:62.5ohm; Approvals & Standards:CE, UL, VDE; Coil Current:80mA; Coil Voltage VDC Nom:5V; Contact Current Max:16A; Contact Voltage AC Nom:440V; Contact Voltage DC Nom:300V; External Depth:29mm; External Height:15.7mm; External Width:12.7mm; Nom Operating Power:400mW; Relay Type:Power - General Purpose
