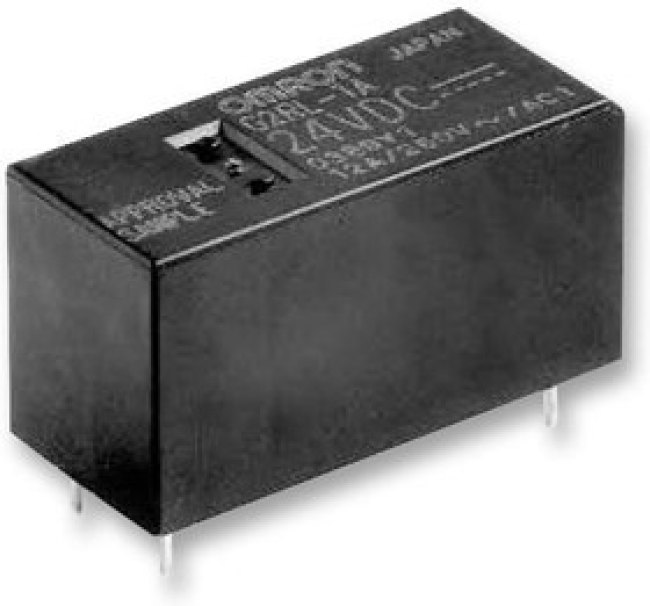

G2RL-1-E-CFDC24, General Purpose Relays

Relays and I/O Modules\General Purpose RelaysThe G2RL-1-E-CF-DC24 is a PCB mount Low-profile Power Relay with DC coil. This G2RL-series power relay has 1CO (SPDT) cadmium-free Ag alloy contact. Relay with 15.7mm height, ideal for incorporation in miniature equipments. High-capacity classification and PCB terminals. Offers high insulation with insulation distance above 8mm and impulse withstand voltage of 10kV between coil and contacts. Class F coil Insulation system. • Single contact• Flux protection enclosure• High sensitivity with power consumption of 400mW• CTI>250 tracking resistance• -40 to 85°C Operating temperature range
