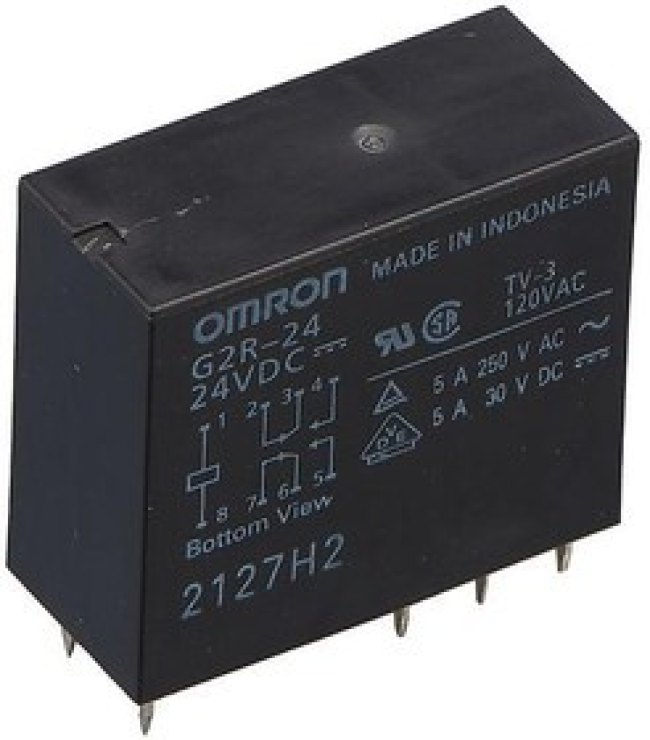

G2R24DC24

ЭлектроэлементRELAY, DPDT, 250VAC, 30VDC, 5A; Contact Configuration:DPDT; Coil Voltage:24VDC; Contact Current:5A; Product Range:G2R Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Solder; Contact Voltage VDC:30VDC; Contact Material:Silver Alloy; Coil Resistance:1.1kohm; Approvals & Standards:CSA, IEC, UL, VDE; Coil Current:21.8mA; Coil Voltage VDC Nom:24V; Contact Current Max:5A; Contact Voltage AC Nom:250V; Contact Voltage DC Nom:30V; External Depth:29mm; External Height:25.5mm; External Width:13mm; Nom Operating Power:530mW; Relay Type:Power - General Purpose
