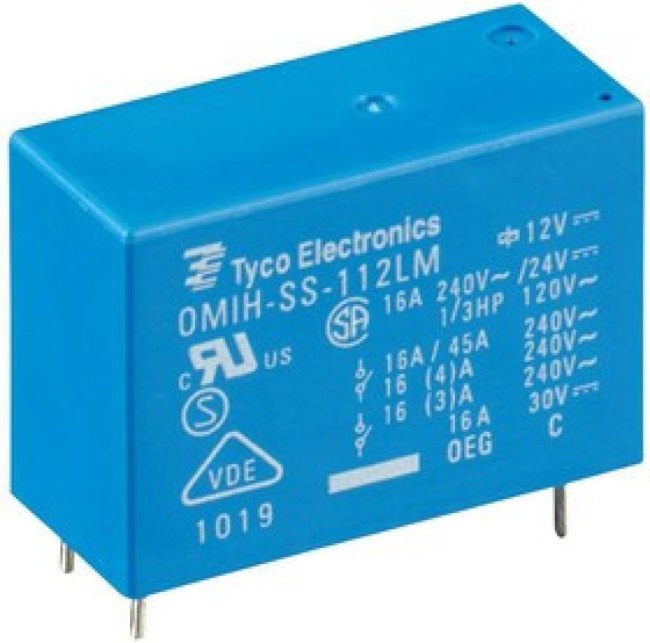

7-1440000-0

ЭлектроэлементRELAY, SPDT, 250VAC, 30VDC, 16A; Contact Configuration:SPDT; Coil Voltage:12VDC; Contact Current:16A; Product Range:OMIH Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage VAC:250VAC; Relay Terminals:Solder; Contact Voltage VDC:30VDC; Contact Material:Silver Tin Oxide; Coil Resistance:270ohm; SVHC:No SVHC (27-Jun-2018); Approvals & Standards:CSA, UL, VDE; Coil Voltage VDC Nom:12V; Contact Current Max:16A; Contact Voltage AC Nom:240V; Contact Voltage DC Nom:24V; External Depth:29.2mm; External Height:20.6mm; External Width:12.8mm; Nom Operating Power:540mW; Relay Type:Power
