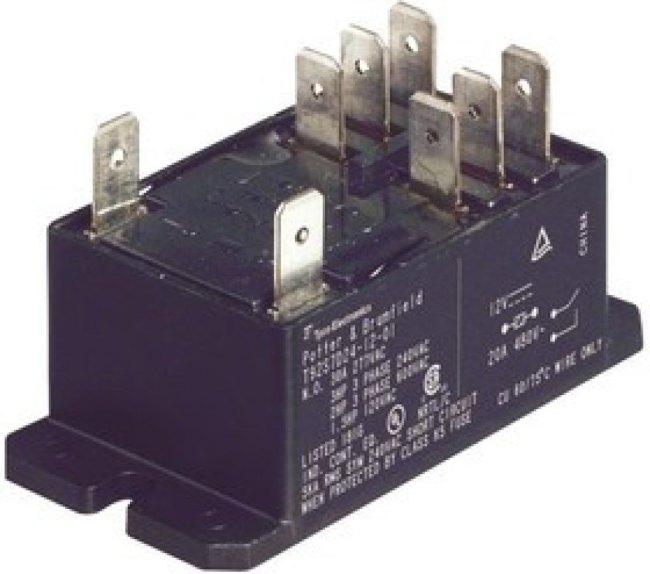

5-1393211-3, Реле питания, DPDT, 12 В DC, 30 А, Серия T92, Панель, Без Защелки

Реле и Переключатели\Реле\Силовые РелеThe T92P11D22-12 is a general-purpose High Power Relay with dust protected plastic case and 2-form-C (2 CO) AgSnO2 contact. This T92-series features panel mount via flanged cover, QC terminal, non-latching coil and 12VDC coil voltage and designed to control compressor loads. • Class-F coil insulation• 155°C Maximum coil temperature• 1.65mm maximum excursions vibration resistance• 1 x 10⁹R Initial insulation resistance between insulated elements• 8mm Clearance/9.5mm creepage• Initial dielectric strength 1500Vrms between open contacts
