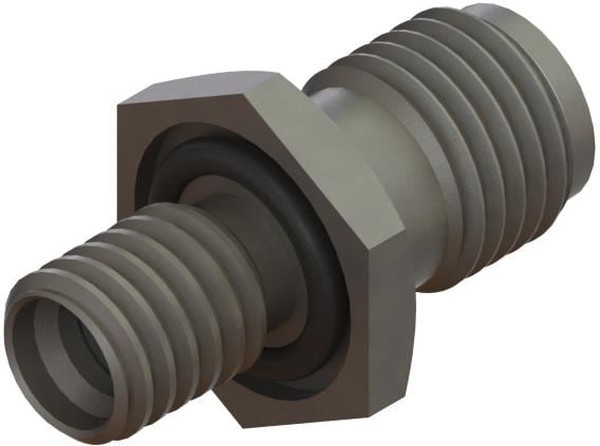

SF1112-6035, РЧ/Коаксиальный адаптер, SMP, Штекер, SMA, Гнездо, Прямой Переходник с Гайкой, 50 Ом

Разъемы\РЧ / Коаксиальные Разъемы и Аксессуары\РЧ ПереходникиThe SF1112-6035 from SV Microwave - Amphenol is a SMP FD male to SMA female bulkhead adapter. The SMP connector was developed to meet an industry need for a smaller high frequency compact design that incorporated ease of use and functionality. SMP connector conforms to DSCC 94007, 94008 and MIL-STD-348. Typical applications include aerospace, military, broadband, instrumentation, routers, telecommunications and satellite communication equipment (SATCOM). • Blindmate / push on design (RFfortless®)• RF performance DC to 18GHz• Designed to accommodate both radial and axial misalignment• Cable connector designs for both flexible and semi-rigid cables• Bullet design• Impedance is 50 ohm, shielding effectiveness >= -80dB, dielectric withstanding voltage is 500VRMS• Stainless steel body• Beryllium copper with gold finish contact• PTFE insulator, silicone rubber o-ring• Temperature range from -65°C to +165°C
