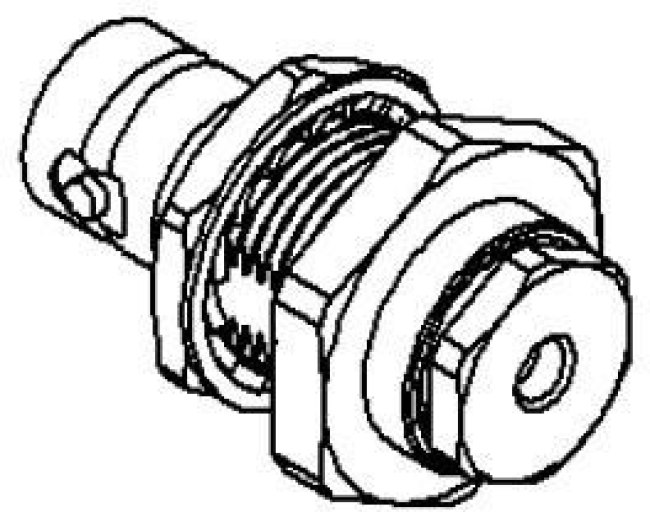

R141324000, RF Connectors / Coaxial Connectors BNC / STRAIGHT BULKHEAD JACK PANEL SEAL REAR MOUNT CLAMP TYPE - CABLE 2.6/50+75

Connectors\RF Interconnects\RF Connectors / Coaxial ConnectorsRF COAXIAL, BNC, STRAIGHT JACK, 50OHM; Connector Type:BNC Coaxial; Connector Body Style:Straight Bulkhead Jack; Coaxial Termination:Solder; Impedance:50ohm; Coaxial Cable Types:RG179, RG187, RG188, RG316; Contact Material:Beryllium Copper; Contact Plating:Gold Plated Contacts; Frequency Max:4GHz; Connector Mounting:Panel Mount; Product Range:-; SVHC:No SVHC (15-Jan-2018); Body Plating:Gold; Coaxial Type:RG174A/U, RG142, RG188A/U, RG316/U, URM95, URM109, URM116, KX3B, KX22A; Connector Mounting Orientation:Panel; Insulation Resistance:5000Mohm; Material:Brass; No. of Mating Cycles:500; Operating Frequency Max:4GHz; Operating Temperature Max:165°C; Operating Temperature Min:-65°C; Termination Method:Clamp; Voltage Rating VAC:500V; Withstand Voltage:1000V
