R125176000, RF Connectors / Coaxial Connectors SMA / RIGHT ANGLE PLUG CRIMP OR SOLDER TYPE CABLE 5/50 D

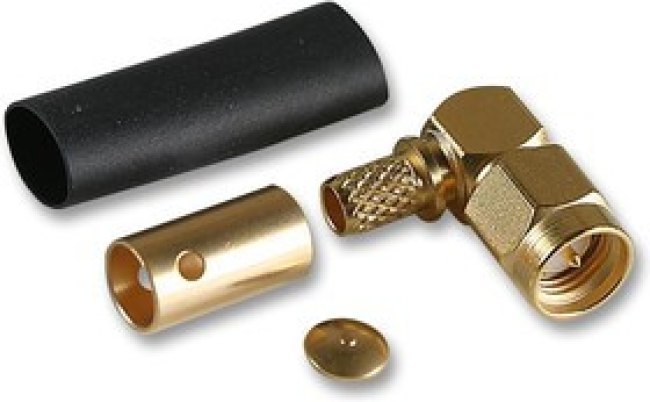

The R125176000 is a crimp or solder SMA Right Angle Plug for use with KX23, RG223, RG400, RG142 and RG142 FTX RF coaxial cables. It has gold over nickel plated stainless steel body with gold over nickel plated brass centre contact and a PTFE insulator. • 5000MR Minimum insulation resistance• 1000Veff Minimum dielectric withstanding voltage• 335Veff Maximum voltage rating• 500-cycle Minimum mating life• -65 to 165°C Operating temperature range
