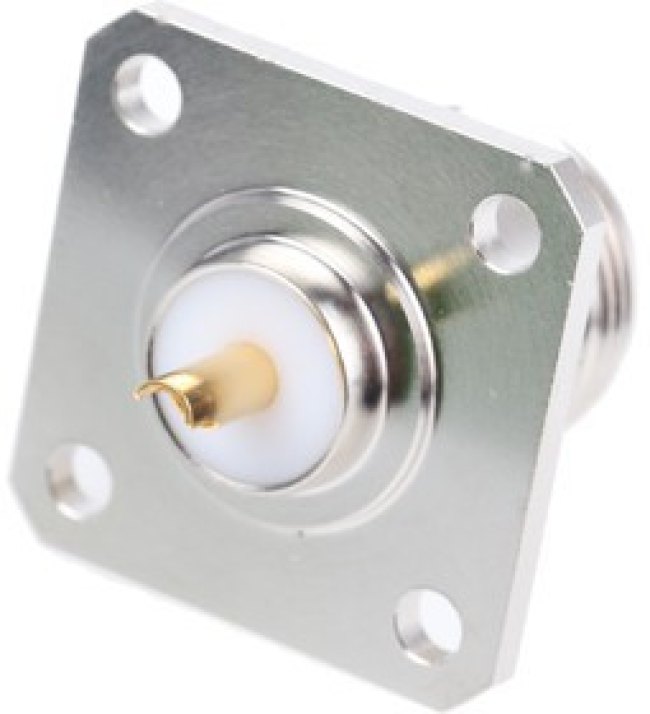

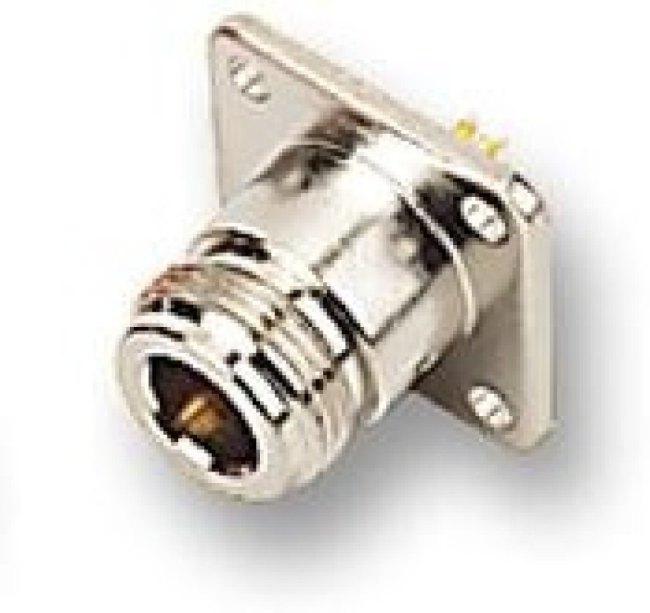

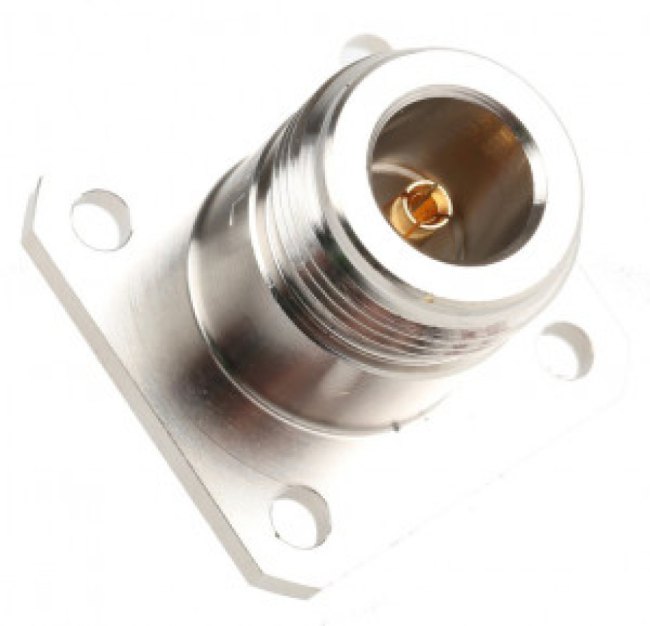

N6551A1-NT3G-50

ЭлектроэлементRF COAXIAL, N, STRAIGHT JACK, 50OHM; Connector Type:N Coaxial; Connector Body Style:Straight Flanged Jack; Coaxial Termination:Solder; Impedance:50ohm; Coaxial Cable Types:-; Contact Material:Phosphor Bronze; Contact Plating:Gold Plated Contacts; Frequency Max:11GHz; Connector Mounting:Panel Mount; Product Range:-; Body Plating:Nickel; Centre Contact Resistance:1mohm; Connector Mounting Orientation:Panel; Female Contact Material:Phosphor Bronze; Female Contact Plating:Gold; Insulation Resistance:5Gohm; Operating Frequency Max:11GHz; Outer Contact Resistance:0.2mohm; Plug Body Material:Brass; VSWR:1.3
