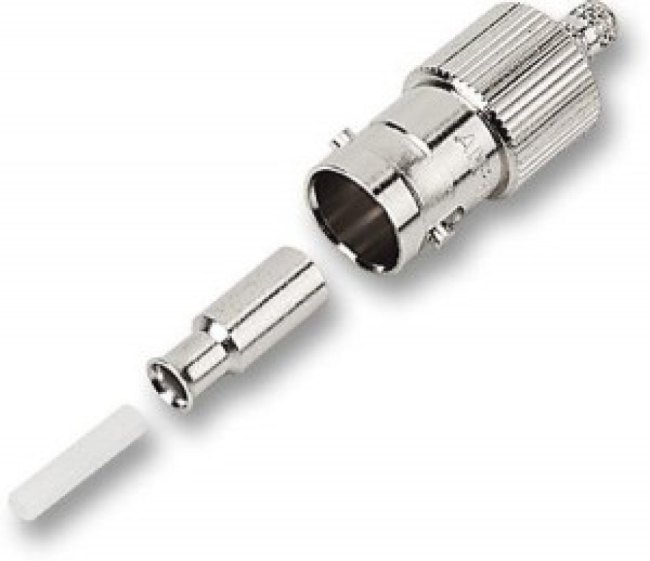

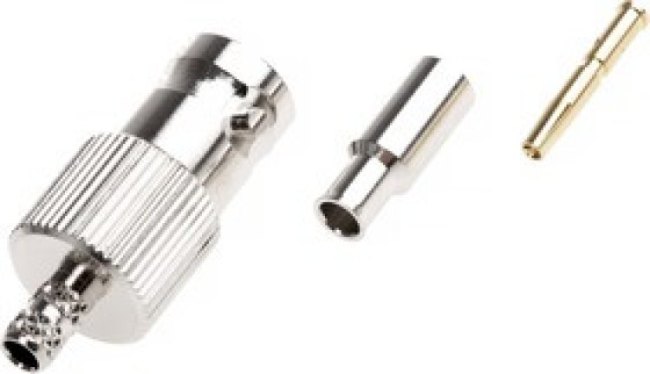

B6121E1-ND3G-5-50

ЭлектроэлементRF COAXIAL, BNC, STRAIGHT JACK, 50OHM; Connector Type:BNC Coaxial; Connector Body Style:Straight Jack; Coaxial Termination:Crimp; Impedance:50ohm; Coaxial Cable Types:RG174, RG188, RG188A, RG316; Contact Material:Phosphor Bronze; Contact Plating:Gold Plated Contacts; Frequency Max:4GHz; Connector Mounting:Cable Mount; Product Range:-; Body Plating:Nickel; Centre Contact Resistance:1.5mohm; Coaxial Type:RG174, RG188, RG188A, RG316; Connector Mounting Orientation:Cable; Female Contact Material:Phosphor Bronze; Female Contact Plating:Gold; Insulation Resistance:5000Mohm; Male Contact Material:Brass; Male Contact Plating:Gold; Operating Frequency Max:4GHz; Outer Contact Resistance:1mohm; Plug Body Material:Brass; Termination Method:Crimp; VSWR:1.3
