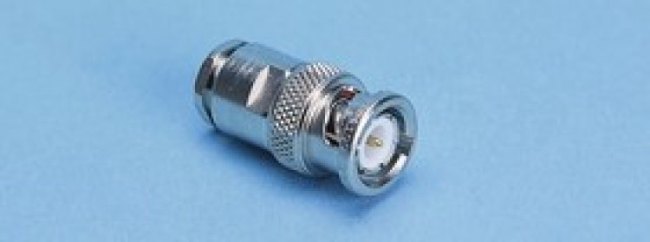

B1141A1-ND3G-3-75

ЭлектроэлементRF COAXIAL, BNC, STRAIGHT PLUG, 75OHM; Connector Type:BNC Coaxial; Connector Body Style:Straight Plug; Coaxial Termination:Clamp; Impedance:75ohm; Coaxial Cable Types:RG59, RG59A, RG59B, RG62, RG140, RG210; Contact Material:Brass; Contact Plating:Gold Plated Contacts; Frequency Max:1GHz; Connector Mounting:Cable Mount; Product Range:-; Body Plating:Nickel; Centre Contact Resistance:1.5mohm; Coaxial Type:RG140, RG210, RG59, RG59A, RG59B, RG62; Connector Mounting Orientation:Cable; Female Contact Material:Phosphor Bronze; Female Contact Plating:Gold; Insulation Resistance:5000Mohm; Male Contact Material:Brass; Male Contact Plating:Gold; Operating Frequency Max:1GHz; Outer Contact Resistance:1mohm; Plug Body Material:Brass; Termination Method:Clamp; VSWR:1.05
