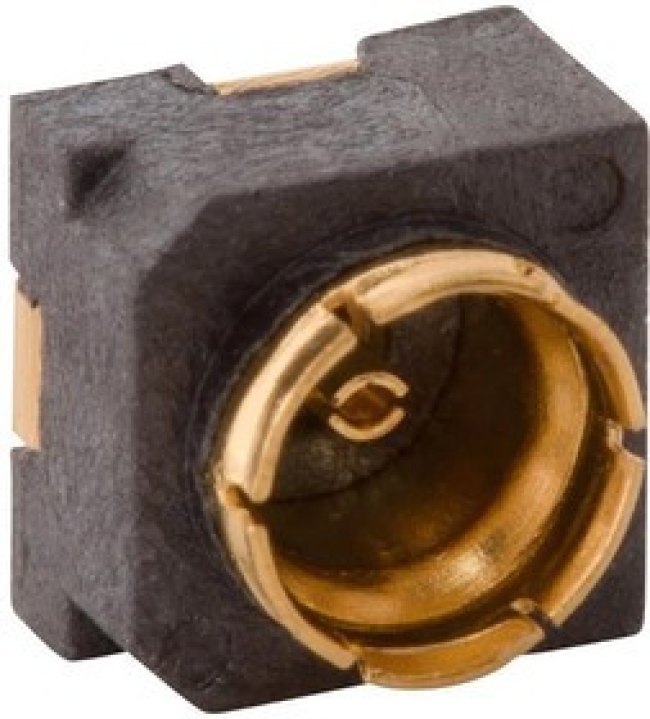

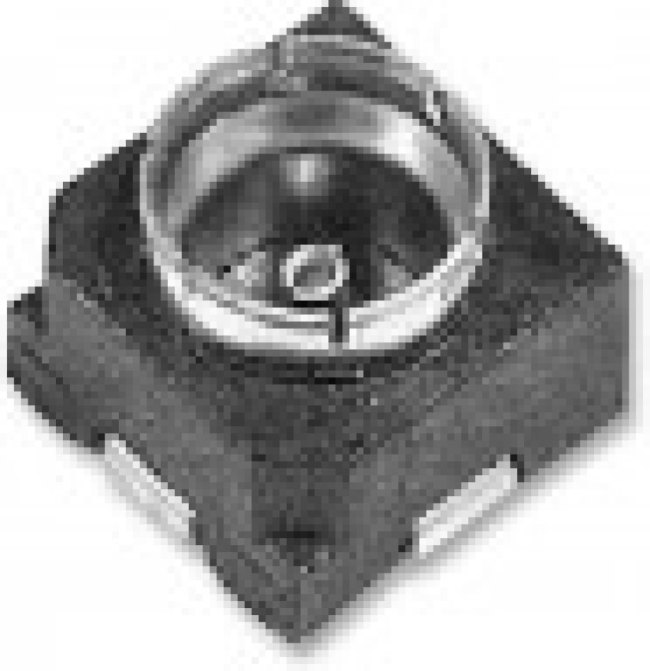

908-22101, RF Connectors / Coaxial Connectors SMT ST JCK

Оставить отзыв
В избранноеВ сравнение
Артикул: 908-22101
Кнопки, переключатели, разъемы, реле Разъемы Высокочастотные Amphenol 908-22101, RF Connectors / Coaxial Connectors ...
Amphenol
Информация о производителе
ПроизводительAmphenol
БрендAmphenol
Основные
body finish:Gold
2
- +
Бонус: 0.04 !
Бонусная программа
Итого: 2
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\RF Interconnects\RF Connectors / Coaxial ConnectorsConnectors for Green Energy TechnologyAmphenol RF Connectors for Green Energy Technology address the designer's interconnect needs with a wide variety of wireless green energy meters and their infrastructure. The Amphenol RF Connectors for Green Energy Technology include a wide variety of options, including miniature, sub-miniature, Quick-Lock for 360 rotation, weatherproof, threaded couplings, and many others that are used for the automated collection of utilities data in SmartGrid, SmartMeter ™, and other automated meter applications.
Информация о производителе
ПроизводительAmphenol
БрендAmphenol
Основные
body finish:Gold
body materialBeryllium Copper
body material:Beryllium Copper
body styleStraight
body style:Straight
contact materialBeryllium Copper
contact material:Beryllium Copper
contact platingGold
contact plating:Gold
contact terminationSolder
contact termination:Solder
coupling mechanism:Push On
Дата загрузки17.03.2024
factory pack quantity25
factory pack quantity: factory pack quantity:1
genderJack
gender:Jack(Socket)
impedance50 Ohms
impedance:50 Ohms
импеданс50Ом
insulation resistance500 MOhms
insulation resistance:500 MOhms
isolation:Non-Isolated
isolation typeNot Isolated
категорияКнопки, переключатели, разъемы, реле/Разъемы
коаксиальный концевая заделкаВертикальный Поверхностный Монтаж
максимальная частота6ГГц
manufacturerAmphenol
manufacturer:Amphenol
материал контактаСплав Бериллиевой Меди
mating cycles500
mating cycles:500
maximum frequency6 GHz
maximum frequency:6 GHz
maximum operating temperature:+155 C
minimum operating temperature:-40 C
монтаж разъемаМонтаж на Печатную Плату
mounting style:SMD/SMT
mounting type-
operating temperature range-40 C to+155 C
orientationStraight
orientation:Straight
packaging:Bag
партномер8004846931
part # aliases713-4400 908-22101
part # aliases:713-4400
покрытие контактаКонтакты с Покрытием из Золота
polarityStandard
polarity:Standard
productPCB Connectors
product:PCB Connectors
product categoryRF Connectors/Coaxial Connectors
product category:RF Connectors/Coaxial Connectors
product type:RF Connectors/Coaxial Connectors
qualificationCommercial
rf series:MMCX
rohsDetails
seriesMMCX
series:MMCX
стиль корпуса разъемаПрямое Гнездо
subcategory:RF Interconnects
termination stylePCB-Surface Mount
termination style:Solder
тип соединителяMMCX Коаксиальный
unit weight0.003457 oz
вес, г0.1
