901-10513-2

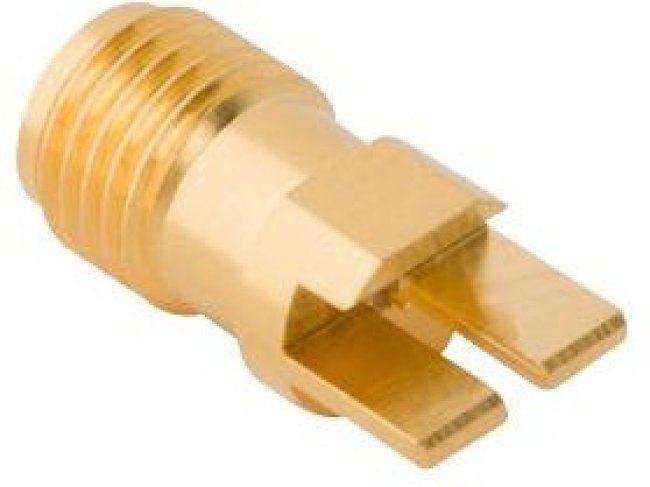

The 901-10513-2 Amphenol RF high frequency SMA end launch connector offers excellent VSWR performance up to 26.5 GHz. Features an optimized end launch design with traditional slide-on mounting legs that make it an ideal PCB connector solution for high frequency applications. • Traditional slide-on edge launch• 1.58 mm (0.062") PCB thickness• Round flange with flats• 0.381 mm (0.015") pin diameter• Impedance 50 ohm• Frequency range 0 to 26.5 GHz• Temperature range -65°C to +165°C
