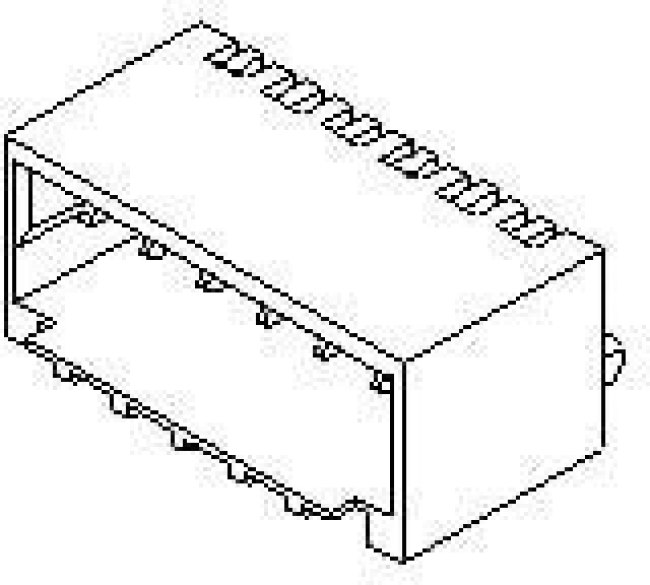

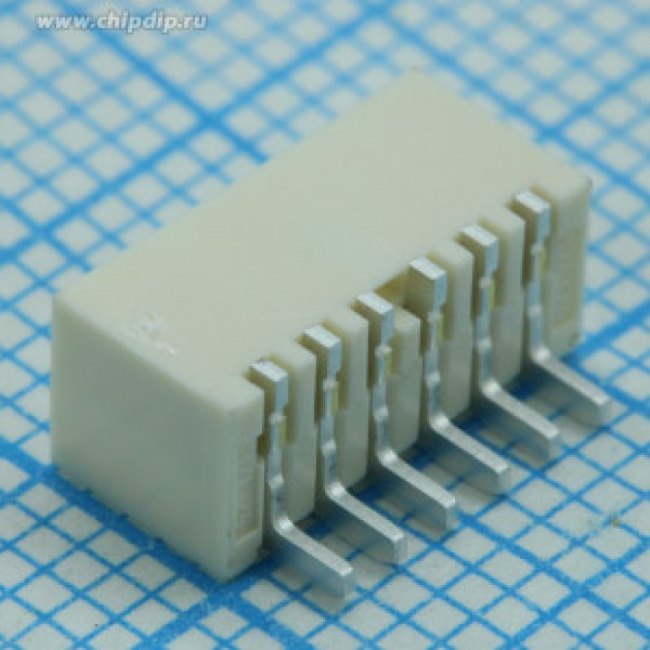

ЭлектроэлементCONNECTOR, HEADER, 6POS, 1ROW, 1.5MM; Pitch Spacing:1.5mm; No. of Contacts:6Contacts; Gender:Header; Product Range:Pico-SPOX 87438 Series; Contact Termination Type:Surface Mount; No. of Rows:1Rows; Contact Plating:Tin Pl
| Информация о производителе | |
| Производитель | Molex |
| Бренд | Molex |
| Основные | |
| applications | General Purpose, Medical |
| application: | Wire-to-Board, Signal |
| automotive | No |
| body orientation | Right Angle |
| contact finish - mating | Tin |
| contact finish thickness - mating | 100.0Вµin(2.54Вµm) |
| contact gender: | Pin(Male) |
| contact material | Brass Alloy |
| contact material: | Tin |
| contact plating: | Tin |
| contact type | Male Pin |
| current rating: | 2.5 A |
| current rating (amps) | - |
| Дата загрузки | 17.03.2024 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 1000 |
| fastening type | Push-Pull |
| features | - |
| flammability rating: | UL 94 V-0 |
| gender | HDR |
| housing material: | Thermoplastic(TP) |
| ingress protection | - |
| insulation color | Beige |
| insulation height | 0.175"(4.45mm) |
| insulation material | Polyamide(PA), Nylon, Glass Filled |
| insulation resistance (mohm) | 1000 |
| категория | Кнопки, переключатели, разъемы, реле/Разъемы |
| manufacturer | Molex |
| manufacturer: | Molex |
| material flammability rating | UL94 V-0 |
| mating cycle (cycles) | 10 |
| maximum contact resistance (mohm) | 20 |
| maximum current rating (a) | 2.5/Contact |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum voltage rating | 250V |
| minimum operating temperature: | -55 C |
| minimum operating temperature (°c) | -55 |
| mounting | surface mount |
| mounting angle: | Right Angle |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount, Right Angle |
| number of contacts | 6 |
| number of positions | 6 |
| number of positions: | 6 Position |
| number of positions loaded | All |
| number of rows | 1 |
| number of rows: | 1 Row |
| operating temperature | -55В°C ~ 105В°C |
| packaging | Digi-ReelВ® |
| партномер | 8002009535 |
| part # aliases: | 874380643 |
| part status | active |
| pitch: | 1.5 mm |
| ppap | No |
| product: | Headers |
| product category: | Headers & Wire Housings |
| product type: | Headers & Wire Housings |
| series | Pico-SPOX 87438 |
| series: | 87438 |
| style | Board to Cable/Wire |
| subcategory: | Headers & Wire Housings |
| terminal pitch (mm) | 01.05.2024 |
| termination | Solder |
| termination method | Solder |
| termination style: | Solder |
| tradename | Pico-SPOX |
| tradename: | Pico-SPOX |
| type | Shrouded Header(4 Sides) |
| type: | Shrouded |
| вес, г | 0.71 |
| voltage rating | 250V |
| voltage rating: | 250 V |
