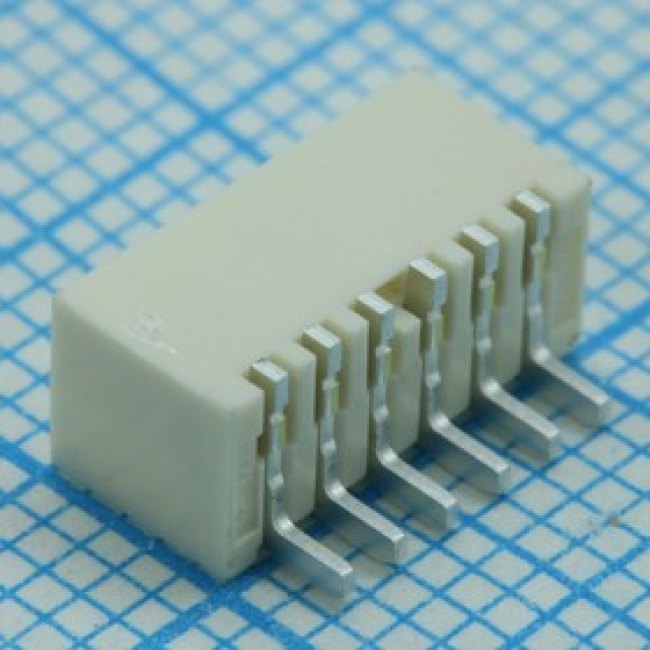

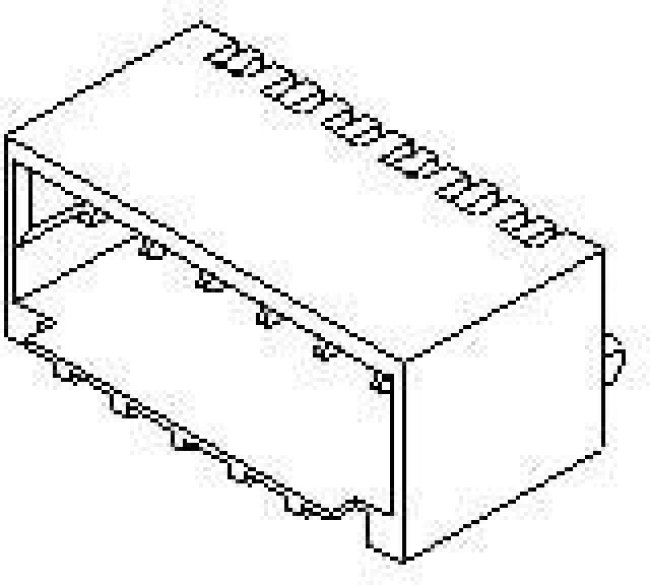

874380643, Соединитель 6 контактов шаг 1.5мм угловой SMD
Оставить отзыв
В избранноеВ сравнение
Артикул: 874380643
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Разъемы, Соединители / Прямоугольные многоконтактные разъемы / Штыревые разъемыСоединитель 6 контактов шаг 1.5мм угловой SMD
Информация о производителе | |
Производитель | Molex |
Бренд | Molex |
Основные | |
applications | General Purpose, Medical |
application: | Wire-to-Board, Signal |
automotive | No |
body orientation | Right Angle |
contact finish - mating | Tin |
contact finish thickness - mating | 100.0Вµin(2.54Вµm) |
contact gender: | Pin(Male) |
contact material | Brass Alloy |
contact material: | Tin |
contact plating: | Tin |
contact type | Male Pin |
current rating: | 2.5 A |
current rating (amps) | - |
Дата загрузки | 16.03.2024 |
eccn (us) | EAR99 |
eu rohs | Compliant |
factory pack quantity: factory pack quantity: | 1000 |
fastening type | Push-Pull |
features | - |
flammability rating: | UL 94 V-0 |
gender | HDR |
housing material: | Thermoplastic(TP) |
ingress protection | - |
insulation color | Beige |
insulation height | 0.175"(4.45mm) |
insulation material | Polyamide(PA), Nylon, Glass Filled |
insulation resistance (mohm) | 1000 |
категория | Кнопки, переключатели, разъемы, реле/Разъемы |
manufacturer | Molex |
manufacturer: | Molex |
material flammability rating | UL94 V-0 |
mating cycle (cycles) | 10 |
maximum contact resistance (mohm) | 20 |
maximum current rating (a) | 2.5/Contact |
maximum operating temperature: | +105 C |
maximum operating temperature (°c) | 105 |
maximum voltage rating | 250V |
minimum operating temperature: | -55 C |
minimum operating temperature (°c) | -55 |
mounting | Surface Mount |
mounting angle: | Right Angle |
mounting style: | SMD/SMT |
mounting type | Surface Mount, Right Angle |
number of contacts | 6 |
number of positions | 6 |
number of positions: | 6 Position |
number of positions loaded | All |
number of rows | 1 |
number of rows: | 1 Row |
operating temperature | -55В°C ~ 105В°C |
packaging | Digi-ReelВ® |
партномер | 8020760490 |
part # aliases: | 874380643 |
part status | Active |
pitch: | 1.5 mm |
ppap | No |
product: | Headers |
product category: | Headers & Wire Housings |
product type: | Headers & Wire Housings |
series | Pico-SPOX 87438 |
series: | 87438 |
style | Board to Cable/Wire |
subcategory: | Headers & Wire Housings |
terminal pitch (mm) | 01.05.2024 |
termination | Solder |
termination method | Solder |
termination style: | Solder |
tradename | Pico-SPOX |
tradename: | Pico-SPOX |
type | Shrouded Header(4 Sides) |
type: | Shrouded |
вес, г | 0.75 |
voltage rating | 250V |
voltage rating: | 250 V |
Время загрузки | 23:40:22 |
