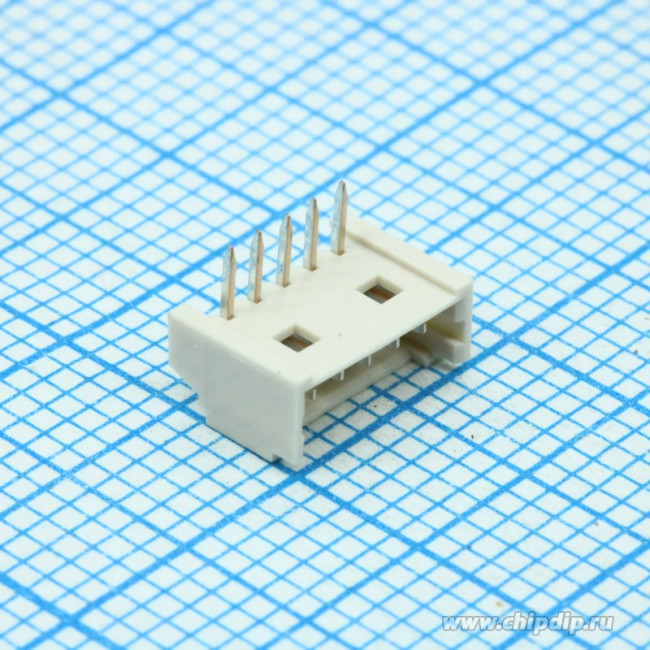

53048-0510, Headers & Wire Housings RIGHT ANGLE HDR 5P

Оставить отзыв
В избранноеВ сравнение
Артикул: 53048-0510
Кнопки, переключатели, разъемы, реле Разъемы Высокочастотные Molex 53048-0510, Headers & Wire Housings RIGHT ...
Информация о производителе
ПроизводительMolex
БрендMolex
Основные
applicationsAutomotive, General Purpose, Industrial, Medical
180
+
Бонус: 3.6 !
Бонусная программа
Итого: 180
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\Headers & Wire HousingsMiniaturization SolutionsMolex Miniaturization Solutions are ideal for a vast array of applications such as automotive, smart devices, mobile devices, and medical technology. The miniaturization of Molex connectors offers the benefit of fitting more components into smaller spaces, leading to increased functionality without the increased size or weight.
Информация о производителе
ПроизводительMolex
БрендMolex
Основные
applicationsAutomotive, General Purpose, Industrial, Medical
application:Wire-to-Board, Signal
connector typeHeader
contact finish - matingTin
contact finish thickness - mating-
contact gender:Pin(Male)
contact materialPhosphor Bronze
contact material:Tin
contact plating:Tin
contact typeMale Blade
current rating:1 A
current rating (amps)1A per Contact
Дата загрузки11.07.2023
factory pack quantity: factory pack quantity:2000
fastening typeDetent Lock
features-
housing material:Nylon
ingress protection-
insulation colorNatural
insulation height0.138"(3.50mm)
insulation materialPolyamide(PA), Nylon
категорияКнопки, переключатели, разъемы, реле/Разъемы
кол-во в упаковке1
manufacturerMolex
manufacturer:Molex
material flammability ratingUL94 V-0
maximum operating temperature:+85 C
minimum operating temperature:-40 C
mounting angle:Right Angle
mounting style:Through Hole
mounting typeThrough Hole, Right Angle
number of positions5
number of positions:5 Position
number of positions loadedAll
number of rows1
number of rows:1 Row
operating temperature-40В C ~ 105В C
packagingTray
packaging:Tray
партномер8004877039
part # aliases:530480510
part statusactive
pitch:1.25 mm
product:Headers
product category:Headers & Wire Housings
product type:Headers & Wire Housings
seriesPicoBlade 53048
series:53048
styleBoard to Cable/Wire
subcategory:Headers & Wire Housings
terminationSolder
termination post length:2.3 mm
termination style:Solder Pin
tradename:PicoBlade
type:Shrouded
вес, г0.13
voltage rating125VAC/DC
voltage rating:125 V
Время загрузки1:17:09
