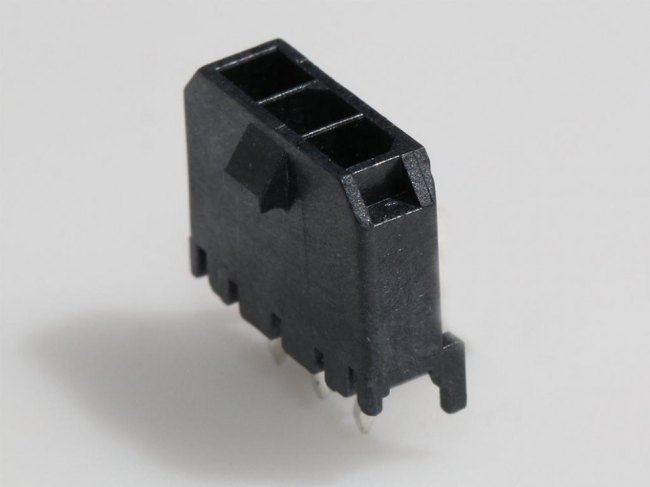

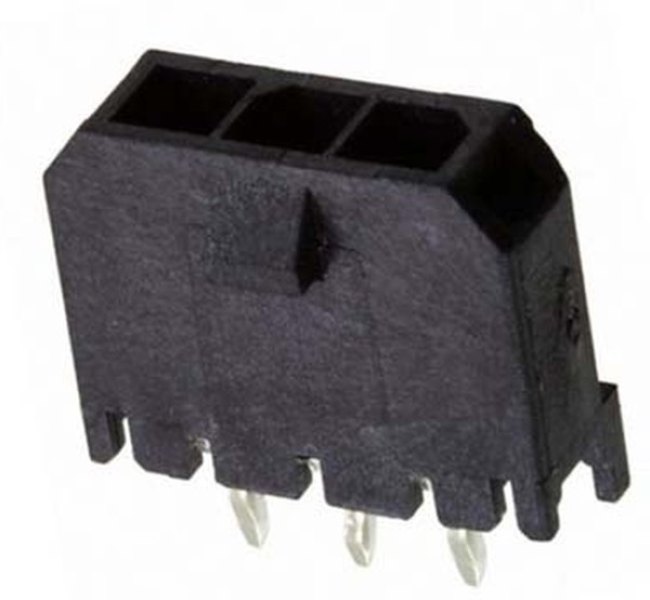

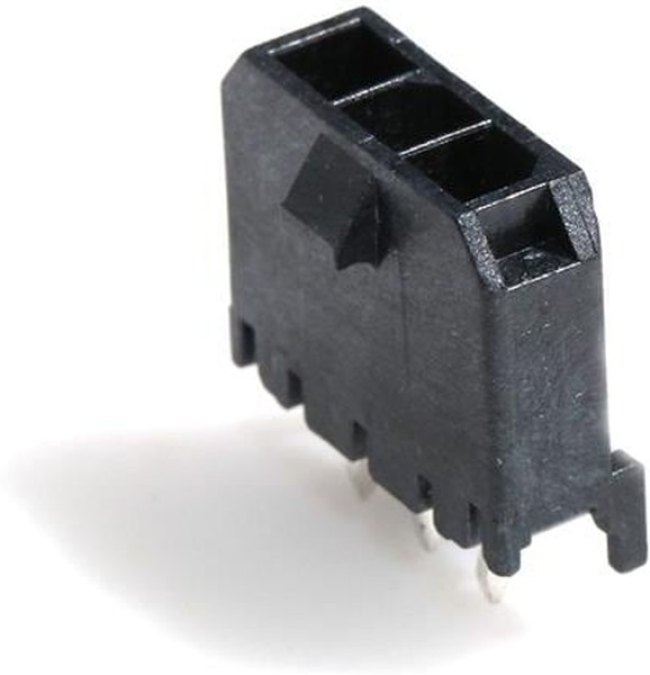

436500315, (MF3-1x03M), Разъем провод -- плата, 3 контакта, Штыревой Разъем 3 мм, серия Micro-Fit монтаж в отверстие лоток
Оставить отзыв
В избранноеВ сравнение
Артикул: 436500315
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Разъемы, Соединители / Разъемы питания / Разъемы межблочного питанияРазъем провод<-->плата, 3 контакта, Штыревой Разъем 3 мм, серия Micro-Fit монтаж в отверстие лоток
Информация о производителе | |
Производитель | Molex |
Бренд | Molex |
Основные | |
applications | General Purpose, Medical, Military, Telecommunications |
application: | Wire-to-Board, Power |
body orientation | Straight|Straight |
contact finish - mating | Tin |
contact finish thickness - mating | 100.0Вµin(2.54Вµm) |
contact gender: | Pin(Male) |
contact material | Brass |
contact material: | Tin |
contact plating | Tin |
contact plating: | Tin |
contact type | Male Pin |
current rating | 5.0A |
current rating: | 8.5 A |
current rating (amps) | - |
Дата загрузки | 16.03.2024 |
eccn (us) | EAR99 |
eu rohs | Compliant |
factory pack quantity: factory pack quantity: | 1 |
fastening type | Locking Ramp |
features | Board Guide |
flammability rating: | UL 94 V-0 |
gender | HDR|HDR |
housing material: | Thermoplastic(TP) |
hts | 8536.69.40.40 |
ingress protection | - |
insulation color | Black |
insulation height | 0.390"(9.91mm) |
insulation material | Liquid Crystal Polymer(LCP), Glass Filled |
insulation resistance (mohm) | 1000 |
категория | Кнопки, переключатели, разъемы, реле/Разъемы |
manufacturer | Molex |
manufacturer: | Molex |
material flammability rating | UL94 V-0 |
mating cycle (cycles) | 30|30 |
maximum contact resistance (mohm) | 10 |
maximum current rating (a) | 8.5/Contact|8.5/Contact |
maximum operating temperature: | +105 C |
maximum operating temperature (°c) | 105|105 |
maximum voltage rating | 600V|600V |
minimum operating temperature: | -40 C |
minimum operating temperature (°c) | -40|-40 |
mounting | Through Hole|Through Hole |
mounting angle: | Straight |
mounting style: | Through Hole |
mounting type | Through Hole |
number of contacts | 3|3 |
number of positions | 3 |
number of positions: | 3 Position |
number of positions loaded | All |
number of rows | 1 |
number of rows: | 1 Row |
operating temperature | - |
packaging | Tray|Tray |
packaging: | Tray |
партномер | 8002775460 |
part # aliases: | 436500315 |
part status | Active |
pitch | 3.0mm |
pitch: | 3 mm |
polarization type | Center Key |
product: | Headers |
product category: | Headers & Wire Housings |
product depth (mm) | 5.57|5.57 |
product height (mm) | 9.9|9.9 |
product length (mm) | 12.65|12.65 |
product type: | Headers & Wire Housings |
product weight (g) | 0.595|0.595 |
series | Micro-Fit 3 43650 |
series: | 43650 |
series number | 43650 |
shrouded/unshrouded | Shrouded |
style | Board to Cable/Wire |
subcategory: | Headers & Wire Housings |
terminal pitch (mm) | 3|3 |
termination | Kinked Pin, Solder |
termination method | Solder|Solder |
termination style: | Solder Pin |
tradename | Micro-Fit 3.0™|Micro-Fit 3.0™ |
tradename: | Micro-Fit 3 |
type | Wire to Board|Power |
type: | Shrouded |
вес, г | 01.04.2024 |
voltage rating | - |
voltage rating: | 600 V |
Время загрузки | 23:40:13 |
