31-2226

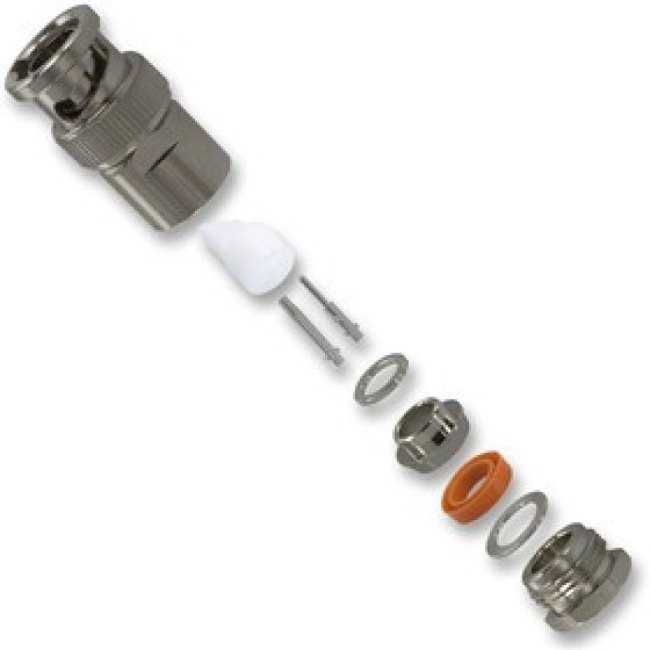

The 31-2226 is a RF Connector, BNC series, BNC straight twin Clamp Plug with silver-plated beryllium copper contacts and solder contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables. This RF connector is designed for RG-108 and RG-108A cable. • Standard polarity• 5000MR Minimum insulation resistance• 500 Mating cycles• -65 to 165°C Temperature range
