112957-11, Разъем РЧ / Коаксиальный, 12G-SDI, BNC Коаксиальный, Прямой Штекер, Обжимной, 75 Ом

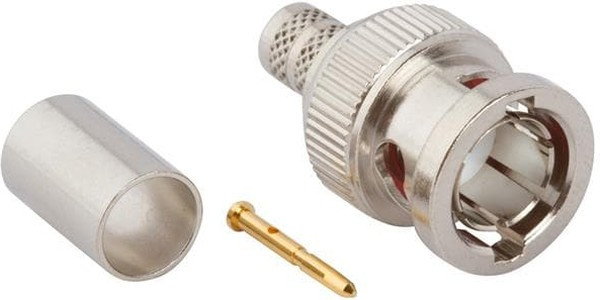

Разъемы\РЧ / Коаксиальные Разъемы и Аксессуары\РЧ РазъемыThe 112957-11 from Amphenol RF is a BNC Straight Crimp Plug for Belden 1694A and Gepco VSD2001 cable. This 75-ohm high-frequency cable connector is designed for 12G-SDI video applications and provides a crystal clear signal transmission on a single channel. • 12 Gb/s performance per SMPTE standard• One channel for 4K or Ultra-HD quality• Familiar BNC 2-stud bayonet coupling mechanism• Nickel-plated brass body and shell• PTFE insulator and red rubber gasket• Gold-plated brass contact pin• Nickel-plated beryllium copper outer contact• Impedance is 75 ohm• Frequency range is DC-6GHz• VSWR is 1.1 max.• Min. dielectric withstanding voltage is 1500Vrms• Temperature range from -65°C to +165°C
